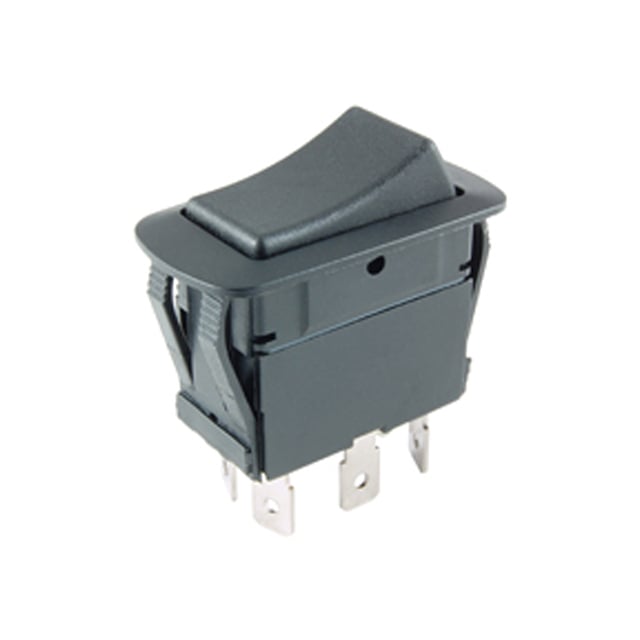

54-229W

Manufacturer :

NTE Electronics, Inc.

Product Category :

Operating Temperature :

0°C ~ 65°C

Actuator Material :

Polycarbonate

Color - Actuator/Cap :

Black

Actuator Marking :

No Marking

Terminals :

.250 Quick Connect Terminals

Product Depth (mm) :

25(mm)

Mounting Style :

Panel

Mechanical Life :

50000

Termination Style :

Quick Connect - 0.250" (6.3mm)

Actuator Type :

Concave (Curved)

Product Status :

Active

Current Rating (Max) :

21@14VDC(A)

Manufacturer :

NTE Electronics

Pole Throw Configuration :

DPDT

Terminal Type :

Quick Connect

Operating Temperature Min Deg. C :

0C

Voltage Rating - DC :

14 V

Product Length (mm) :

46(mm)

Ingress Protection :

IP65 - Dust Tight, Water Resistant

Illumination Type :

Not Required

Switch Configuration :

ON OFF ON

AC Voltage Rating (Max) :

277

DC Voltage Rating (Max) :

14

Mounting Type :

Panel Mount, Snap-In

Function :

On-Off-On

Operating Temp Range :

0C to 65C

Package :

Bulk

Circuit :

SPST

Series :

-

Actuator Style :

Curved Rocker

Current Rating (Amps) :

21A (DC)

Product Height (mm) :

49.6(mm)

Operating Temperature Max Deg. C :

65C

Switch Function :

On-Off
