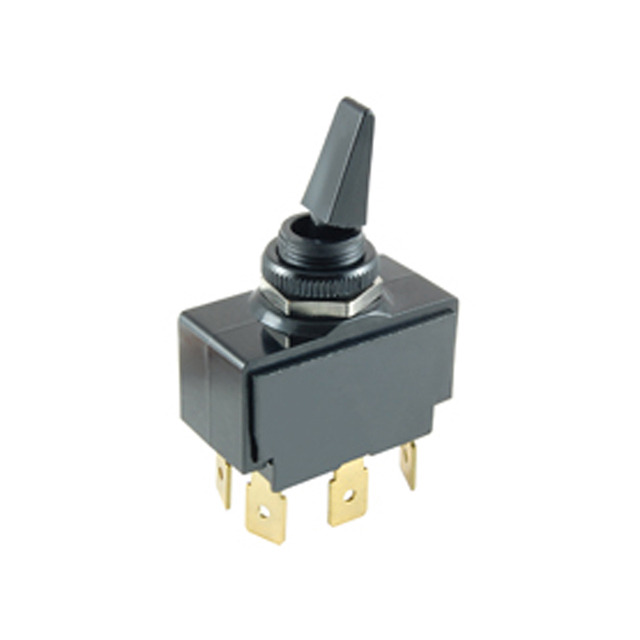

54-108
Or copy the link below:
- Mfr.Part #
- 54-108
- Manufacturer
- NTE Electronics, Inc.
- Package / Case
- Datasheet
- Download
- Description
- SWITCH/TOGGLE/DP/20A
- Stock
- 148
- In Stock ：
- 148
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- NTE Electronics, Inc.
- Product Category :
- Length :
- 43.7 mm
- Actuator Length :
- 17.44mm
- Width :
- 17.5 mm
- Series :
- -
- Function :
- On-none-on
- Contact Material :
- Copper
- Wire/Cable Gauge :
- 1 AWG
- Mounting Type :
- Panel Mount
- Actuator Style :
- Paddle
- Termination Style :
- Quick Connect - 0.250" (6.3mm)
- Actuator Material :
- Polycarbonate
- Thickness :
- 2.77 mm
- Operating Temperature :
- 0°C ~ 85°C
- Contacts :
- DPDT
- Terminal Type :
- Spade (1/4 in)
- Actuator Color :
- Black
- Manufacturer :
- NTE Electronics
- Product Status :
- Active
- RoHS :
- Non-Compliant
- Actuator Type :
- Paddle
- Illumination Voltage (Nominal) :
- -
- Voltage Rating - AC :
- 125 V
- Contact Plating :
- Tin
- Switch Function :
- On-On
- Illumination Type, Color :
- -
- Ingress Protection :
- -
- Current Rating (Amps) :
- 20A (AC)
- Approvals :
- UL;CSA
- Circuit Configuration :
- On-none-on
- Terminals :
- .250 Inch Quick Connect
- Package :
- Bulk
- Illumination :
- Non-Illuminated
- Circuit :
- DPDT
- Color :
- Green
- Datasheets
- 54-108
54-108 Documents
54-108 datasheet pdf and Toggle Switches product details from NTE Electronics, Inc stock available at
