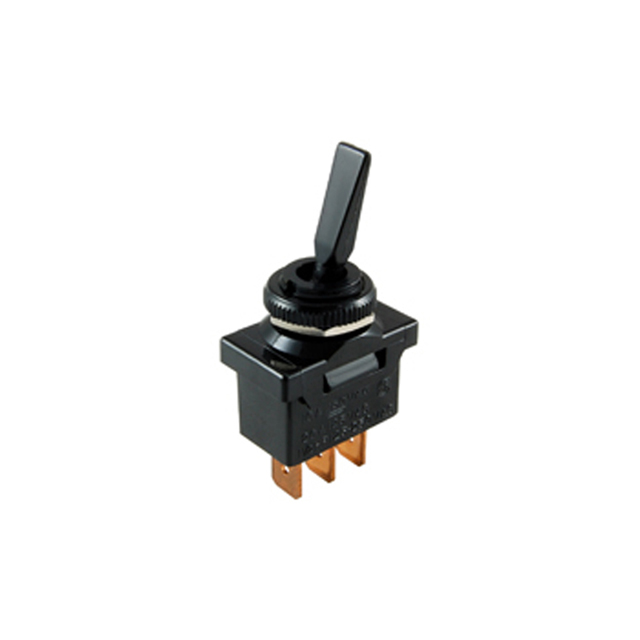

54-022
Or copy the link below:
- Mfr.Part #
- 54-022
- Manufacturer
- NTE Electronics, Inc.
- Package / Case
- Datasheet
- Download
- Description
- SWITCH/TOGGLE/SP/20A
- Stock
- 58
- In Stock ：
- 58
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- NTE Electronics, Inc.
- Product Category :
- Actuator Color :
- Black
- Current Rating (Amps) :
- 20A (AC)
- Electrical Life :
- 25,000 Cycles
- Terminal Type :
- Spade (1/4 in)
- Actuator Length :
- 17.44mm
- Approvals :
- UL;CSA
- Actuator Type :
- Flatted
- Termination Style :
- Quick Connect - 0.250" (6.3mm)
- Product Status :
- Active
- Circuit :
- SPDT
- Manufacturer :
- NTE Electronics
- RoHS :
- Non-Compliant
- Illumination Voltage (Nominal) :
- -
- Illumination :
- Non-Illuminated
- Features :
- Black Actuator
- Contacts :
- SPDT
- Mounting Type :
- Panel Mount
- Voltage Rating - AC :
- 125 V
- Circuit Configuration :
- On-Off-On
- Bushing Thread :
- 15/32-32
- Package :
- Bulk
- Operating Temperature :
- 0°C ~ 85°C
- Series :
- -
- Panel Cutout Dimensions :
- Circular - 12.70mm Dia
- Illumination Type, Color :
- -
- Actuator Material :
- Polyamide (PA), Nylon
- Ingress Protection :
- -
- Switch Function :
- On-Off-On
- Function :
- On-Off-On
- Datasheets
- 54-022
54-022 datasheet pdf and Toggle Switches product details from NTE Electronics, Inc stock available at
