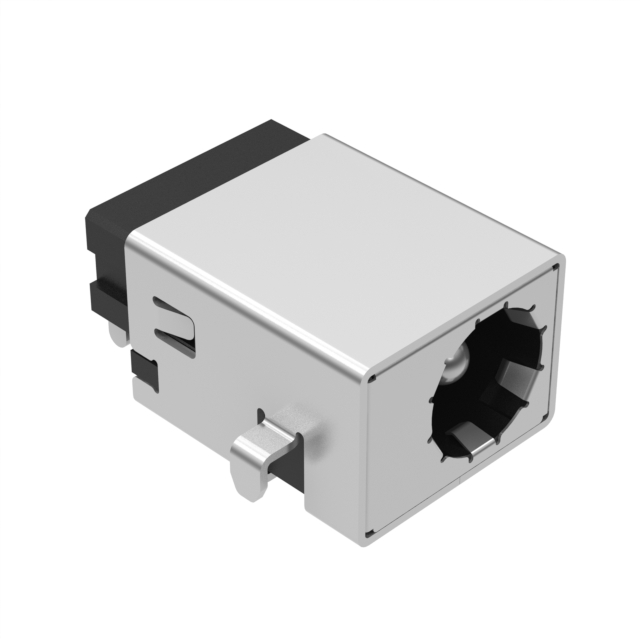

54-00255

Manufacturer :

Tensility International Corporation

Product Category :

Power Connectors

Industry Recognized Mating Diameter :

2.10mm ID (0.083), 5.50mm OD (0.217)

Contact Material :

Brass, Phosphor Bronze

Number of Positions/Contacts :

2 Conductors, 3 Contacts

Features :

-

Mating Length/Depth :

-

Actual Diameter :

0.083 (2.10mm ID), 0.228 (5.80mm OD)

Housing Material :

Liquid Crystal Polymer (LCP)

Body Material :

-

Includes :

-

Contact Material - Plating :

Silver

Termination :

Solder

Current Rating (Amps) :

7.5 A

Connector Type :

JACK

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Series :

-

Gender :

Male

Mounting Type :

Board Cutout, Through Hole, Right Angle

Product Status :

Active

Material Flammability Rating :

UL94 V-0

Body Color :

Silver

Internal Switch(s) :

Single Switch, Normally Closed

Operating Temperature :

-40°C ~ 130°C

Voltage - Rated :

48V

Ingress Protection :

-

Shielding :

Unshielded

Insulation Color :

Black

Mounting Feature :

-

Thread Size :

-
