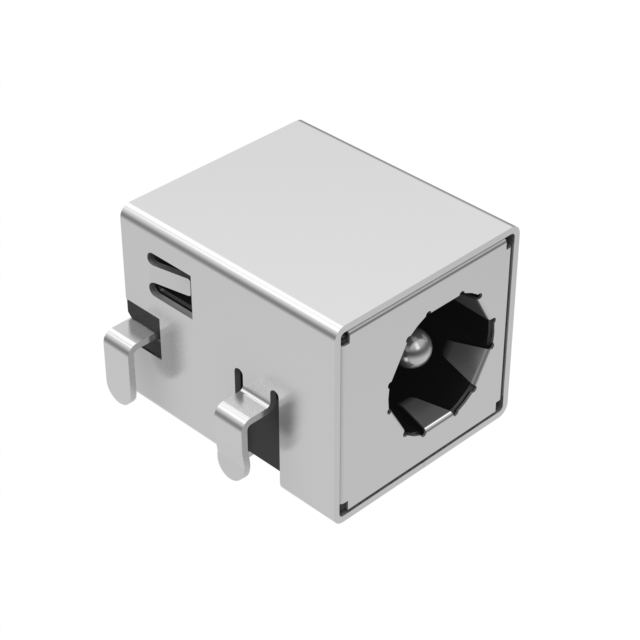

54-00253

Manufacturer :

Tensility International Corporation

Product Category :

Power Connectors

Contact Material - Plating :

Silver

Body Material :

-

Mating Length/Depth :

-

Internal Switch(s) :

Single Switch, Normally Closed

Connector Type :

JACK

Contact Material :

Brass, Phosphor Bronze

Mounting Feature :

-

Material Flammability Rating :

UL94 V-0

Includes :

-

Body Color :

Silver

Features :

-

Actual Diameter :

0.079 (2.00mm ID), 0.236 (6.00mm OD)

Gender :

Male

Operating Temperature :

-40°C ~ 130°C

Shielding :

Unshielded

Mounting Type :

Board Cutout, Through Hole, Right Angle

Current Rating (Amps) :

8 A

Insulation Color :

Black

Housing Material :

Liquid Crystal Polymer (LCP)

Thread Size :

-

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Termination :

Solder

Ingress Protection :

-

Number of Positions/Contacts :

2 Conductors, 3 Contacts

Voltage - Rated :

48V

Industry Recognized Mating Diameter :

2.10mm ID (0.083), 5.50mm OD (0.217)

Series :

-

Product Status :

Active
