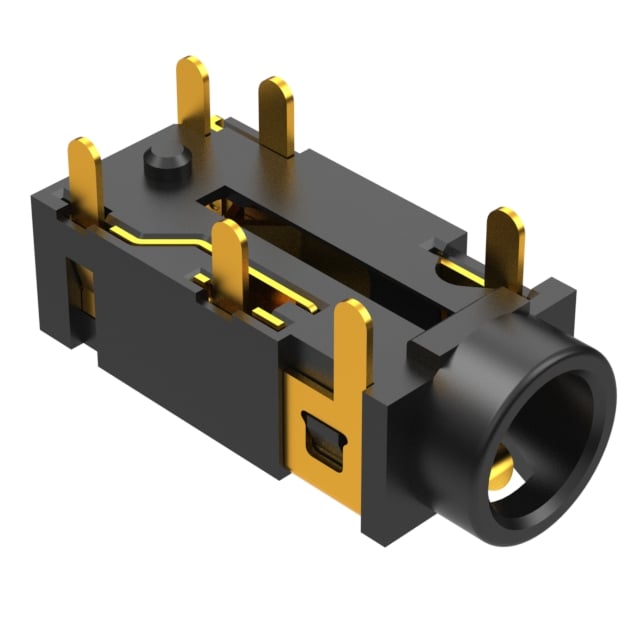

54-00176

Manufacturer :

Tensility International Corporation

Product Category :

Audio Connectors

Insulation Color :

-

Mounting Type :

Through Hole, Right Angle

Signal Lines :

Stereo (4 Conductor, TRRS)

Current Rating (Amps) :

0.5 A

Number of Positions/Contacts :

4 Conductors, 6 Contacts

Gender :

FEMALE

Cable Opening :

-

Features :

Board Guide

Housing Material :

Polyamide (PA9T), Nylon 9T

Contact Material - Plating :

Gold

Body Material :

-

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Series :

-

Includes :

-

Actual Diameter :

0.142 (3.60mm)

Industry Recognized Mating Diameter :

3.50mm (0.141, 1/8, Mini Plug) - Headphone

Termination :

Solder

Contact Material :

Phosphor Bronze

Internal Switch(s) :

-

Thread Size :

-

Body Color :

Black

Shielding :

Unshielded

Operating Temperature :

-40°C ~ 105°C

Voltage - Rated :

48VDC

Product Status :

Active

Mating Length/Depth :

-

Panel Hole Size :

-

Connector Type :

Phone Jack
