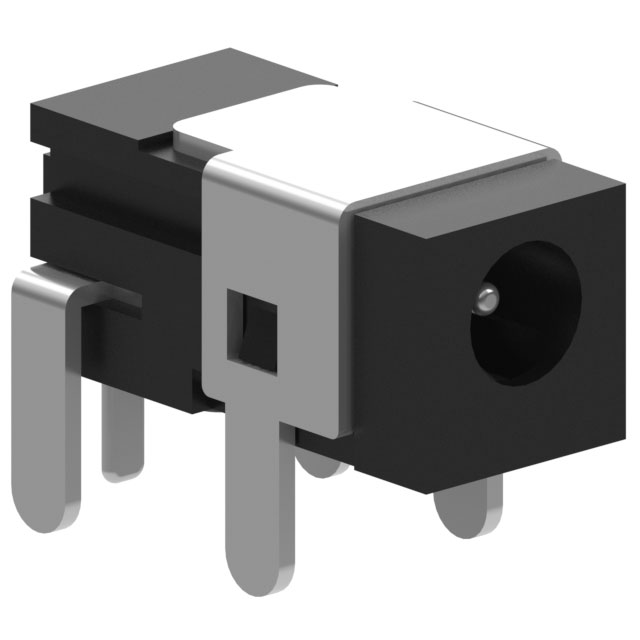

54-00138
Or copy the link below:
- Mfr.Part #
- 54-00138
- Manufacturer
- Tensility International Corporation
- Package / Case
- Datasheet
- Download
- Description
- CONN JACK R/A PCB 2.35X0.7MM
- Stock
- 19,118
- In Stock ：
- 19,118
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Tensility International Corporation
- Product Category :
- Power Connectors
- Operating Temperature :
- -25°C~85°C
- Connector Type :
- JACK
- Number of Positions/Contacts :
- 2 Conductors, 3 Contacts
- Packaging :
- Bulk
- Body Material :
- Brass
- Feature :
- Board Guide
- Internal Switch(s) :
- Single Switch, Normally Closed
- Current Rating (Amps) :
- 6A
- Contact Material :
- Brass, Phosphor Bronze
- Termination :
- Solder
- Shielding :
- Shielded
- Actual Diameter :
- 0.028 (0.70mm ID), 0.093 (2.35mm OD)
- Mounting Type :
- Through Hole, Right Angle
- Insulation Color :
- Black
- Factory Lead Time :
- 15 Weeks
- Gender :
- Male
- Voltage - Rated :
- 48V
- Industry Recognized Mating Diameter :
- 0.70mm ID (0.028), 2.35mm OD (0.093)
- Contact Material - Plating :
- Silver
- RoHS Status :
- ROHS3 Compliant
- Housing Material :
- Polyamide (PA), Nylon
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Datasheets
- 54-00138
