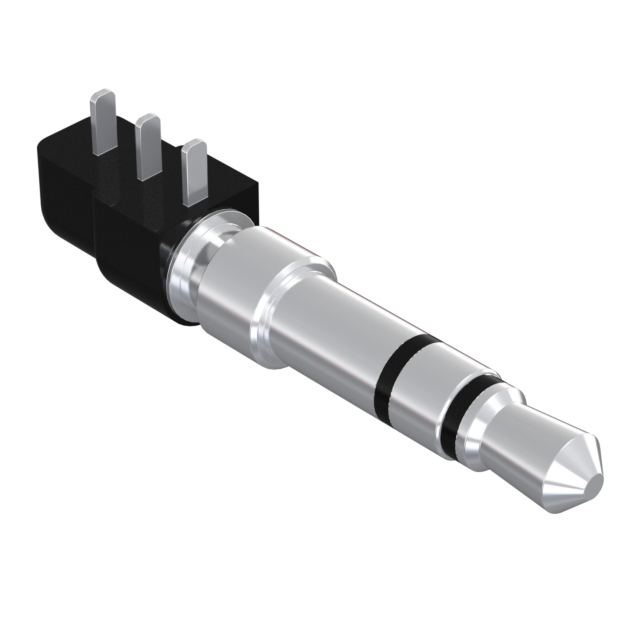

54-00036
Or copy the link below:
- Mfr.Part #
- 54-00036
- Manufacturer
- Tensility International Corporation
- Package / Case
- Datasheet
- Download
- Description
- CONN PLUG STEREO 3.5MM RA 3COND
- Stock
- 15,591
- In Stock ：
- 15,591
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Tensility International Corporation
- Product Category :
- Audio Connectors
- Body Color :
- Silver, Black
- Connector Type :
- Phone Plug
- Industry Recognized Mating Diameter :
- 3.50mm (0.141, 1/8, Mini Plug) - Headphone
- Min Operating Temperature :
- -25°C
- Operating Temperature :
- -25°C~70°C
- Shielding :
- Unshielded
- Internal Switch(s) :
- Does Not Contain Switch
- Gender :
- Male
- Mounting Type :
- Through Hole, Right Angle
- Packaging :
- Bulk
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mating Length/Depth :
- 0.551 14.00mm
- Body Material :
- Brass
- Number of Positions/Contacts :
- 3 Conductors, 3 Contacts
- Termination :
- Solder
- Housing Material :
- Polyamide (PA46), Nylon 4/6
- Signal Lines :
- Stereo (3 Conductor, TRS)
- Factory Lead Time :
- 15 Weeks
- Max Operating Temperature :
- 70°C
- Actual Diameter :
- 0.138 (3.50mm)
- Contact Plating :
- Nickel
- RoHS Status :
- ROHS3 Compliant
- Published :
- 2015
- Mount :
- Through Hole
- Contact Material :
- Brass
- Contact Material - Plating :
- Nickel
- Datasheets
- 54-00036
