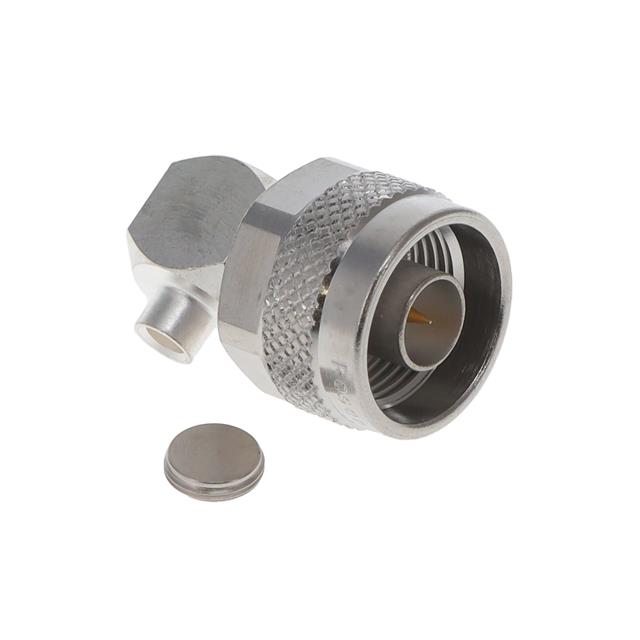

53S205-272N5
Or copy the link below:
- Mfr.Part #
- 53S205-272N5
- Manufacturer
- Rosenberger
- Package / Case
- Datasheet
- Download
- Description
- CONN N TYPE PLUG RA 50OHM SOLDER
- Stock
- 944
- In Stock ：
- 944
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Rosenberger
- Product Category :
- Coaxial Connector (RF) Assemblies
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Panel Mount :
- No
- Operating Temperature :
- -55°C~155°C
- Cable Group :
- RG-402 (.141 Semi Rigid)
- Impedance :
- 50Ohm
- Connector Style :
- N Type
- Connector Type :
- Plug, Male Pin
- Mating Cycles :
- 500
- JESD-609 Code :
- e4
- Housing Color :
- Silver
- Contact Termination :
- Solder
- RoHS Status :
- RoHS Compliant
- Mounting Type :
- Free Hanging (In-Line), Right Angle
- Dielectric Material :
- Polytetrafluoroethylene (PTFE)
- Voltage - Rated :
- 500V
- Option :
- GENERAL PURPOSE
- Includes :
- 2 pcs - 1 Connector, 1 End Cap
- Filter Feature :
- No
- IEC Conformance :
- No
- Fastening Type :
- Threaded
- Published :
- 2015
- Center Contact Plating :
- Gold
- Factory Lead Time :
- 13 Weeks
- Additional Feature :
- INSERTION LOSS MAX AT: 6 GHZ; APPLICABLE CABLES: RG 402/U
- Packaging :
- Bulk
- Frequency (Max) :
- 11GHz
- Number of Ports :
- 1
- MIL Conformance :
- No
- Body Material :
- Brass
- DIN Conformance :
- No
- Insulation Material :
- POLYTETRAFLUORO ETHYLENE
- Insertion Loss :
- 0.05dB
- Datasheets
- 53S205-272N5
53S205-272N5 Documents
Plug, Male Pin Threaded 50Ohm Bulk N Type Solder 1 Port Polytetrafluoroethylene (PTFE) -55°C~155°C
53S205-272N5 Overview
The connector type Plug, Male Pin refers to the connector type.The device's mounting type is Free Hanging (In-Line), Right Angle.In order to package the product, a Bulk case is used.In addition, there are other features such as INSERTION LOSS MAX AT: 6 GHZ; APPLICABLE CABLES: RG 402/U, to mention only a few.It features 1 ports for managing a variety of tasks.The device runs in -55°C~155°C Operating Temperature.
53S205-272N5 Features
53S205-272N5 Applications
There are a lot of Rosenberger
53S205-272N5 Coaxial Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
