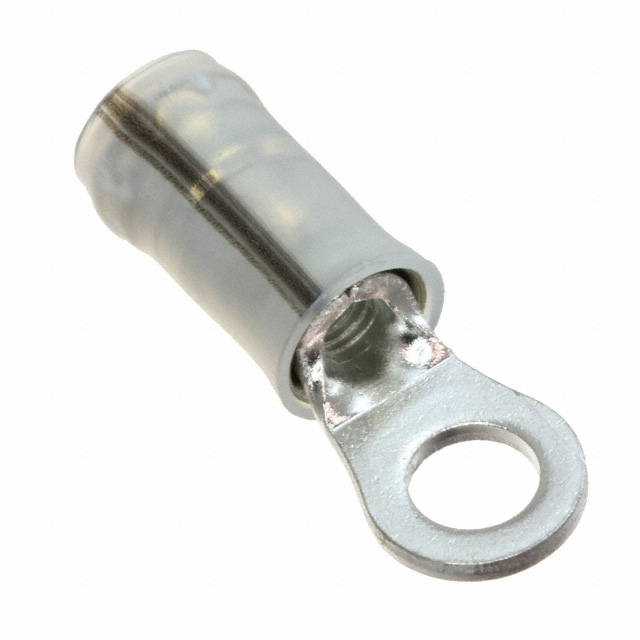

53983-1
Or copy the link below:
- Mfr.Part #
- 53983-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RING CIRC 14-16AWG #10
- Stock
- 12,192
- In Stock ：
- 12,192
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Ring Connectors
- Contact Plating :
- Lead, Tin
- Body Plating :
- Tin
- Wire Gauge (Min) :
- 14 AWG
- Material Thickness :
- 1.2192mm
- Width - Outer Edges :
- 0.343 8.71mm
- Wire Gauge :
- 14-16 AWG
- Packaging :
- Bulk
- Feature :
- Heavy Duty, Radiation Resistant, Serrated Termination
- Contact Finish :
- Tin-Lead
- Terminal Type :
- Circular
- HTS Code :
- 8536.90.40.00
- Heavy Duty :
- yes
- Series :
- PIDG
- Stud Diameter :
- 5 mm
- Length - Overall :
- 1.046 26.57mm
- Mounting Type :
- Free Hanging (In-Line)
- Mount :
- Free Hanging
- Wire Gauge (Max) :
- 16 AWG
- Number of Holes :
- 1
- Lead Free :
- Not Applicable
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- RoHS Status :
- Non-RoHS Compliant
- ECCN Code :
- EAR99
- Color :
- Natural, Black Stripe
- Orientation :
- Straight
- Termination :
- Crimp
- Sealable :
- No
- Insulation Diameter :
- 0.230 (5.84mm)
- Plating Thickness :
- 2.54μm
- Length :
- 26.5684mm
- Contact Material :
- Copper
- Factory Lead Time :
- 15 Weeks
- Plating :
- Lead, Tin
- Tongue Thickness :
- 1.27mm
- Stud/Tab Size :
- 10 Stud
- Terminal and Terminal Block Type :
- RING TERMINAL
- Diameter - Inside :
- 5.96 mm
- Thickness :
- 0.050 1.27mm
- Insulation :
- Insulated
- Material - Insulation :
- Polyvinylidene Fluoride (PVDF)
- ELV :
- Non-Compliant
- Published :
- 2008
- Lifecycle Status :
- ACTIVE (Last Updated: 6 days ago)
- Datasheets
- 53983-1
53983-1 datasheet pdf and Terminals - Ring Connectors product details from TE Connectivity AMP Connectors stock available at Xinshop
