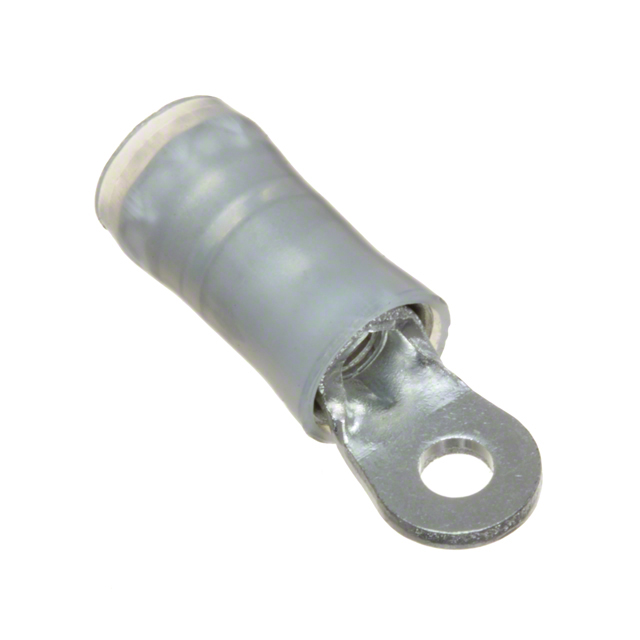

53963-1
Or copy the link below:
- Mfr.Part #
- 53963-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RING CIRC 14-16AWG #4 CRIMP
- Stock
- 582
- In Stock ：
- 582
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Ring Connectors
- Insulated Wire Support :
- yes
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Thickness :
- 0.048 1.22mm
- Color :
- Natural, Black Stripe
- Heavy Duty :
- No
- Tongue Thickness :
- 1.21mm
- Number of Holes :
- 1
- Terminal Type :
- Circular
- Contact Material :
- Copper
- Wire/Cable Diameter :
- 5.842 mm
- Contact Finish :
- Tin-Lead
- Plating Thickness :
- 2.54μm
- Insulation Diameter :
- 0.150 ~ 0.230 (3.81mm ~ 5.84mm)
- Material Thickness :
- 1.21mm
- Mounting Type :
- Free Hanging (In-Line)
- Diameter - Inside :
- 5.96 mm
- Insulation :
- Insulated
- Sealable :
- No
- Government Qualified :
- No
- Termination :
- Crimp
- Feature :
- Heavy Duty, Serrated Termination
- Factory Lead Time :
- 4 Weeks
- RoHS Status :
- Non-RoHS Compliant
- Length - Overall :
- 0.955 24.26mm
- Length :
- 24.257mm
- Stud Diameter :
- 3.0226 mm
- Plating :
- Lead, Tin
- Width - Outer Edges :
- 0.281 7.14mm
- Stud/Tab Size :
- 4 Stud
- Wire Gauge :
- 14-16 AWG
- Material - Insulation :
- Polyvinylidene Fluoride (PVDF)
- Stud Size :
- M2.5
- Packaging :
- Bulk
- Series :
- PIDG
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- ELV :
- Non-Compliant
- Published :
- 2004
- Datasheets
- 53963-1
