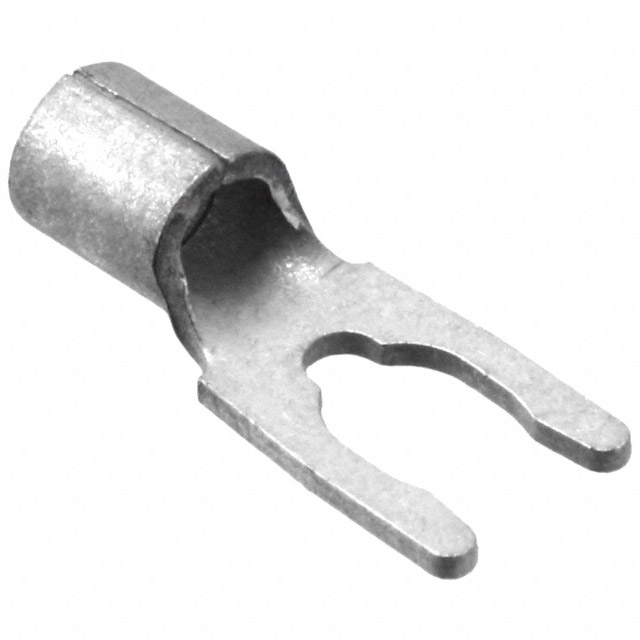

53836-2
Or copy the link below:
- Mfr.Part #
- 53836-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN SPADE TERM 10-12AWG #10
- Stock
- 64,639
- In Stock ：
- 64,639
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Spade Connectors
- Length :
- 19.74mm
- Stud Diameter :
- 4.82 mm
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Material :
- Bronze
- ECCN Code :
- EAR99
- Orientation :
- Straight
- Diameter - Inside :
- 3.28 mm
- Series :
- Solistrand
- Width - Outer Edges :
- 0.312 7.92mm
- Contact Finish :
- Tin
- Factory Lead Time :
- 14 Weeks
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Wire Gauge :
- 10-12 AWG
- Packaging :
- Tape and Reel (TR)
- Pbfree Code :
- yes
- Stud/Tab Size :
- 10 Stud
- Terminal Type :
- Spring, Snap
- Terminal Gender :
- FEMALE
- Lead Free :
- Not Applicable
- Insulation :
- Non-Insulated
- Feature :
- Brazed Seam, Serrated Termination
- RoHS Status :
- RoHS Compliant
- Plating Thickness :
- 2.54μm
- Material Thickness :
- 1.07mm
- Wire Gauge (Min) :
- 10 AWG
- Tongue Thickness :
- 990μm
- Mount :
- Free Hanging
- Terminal and Terminal Block Type :
- FORK TERMINAL
- Contact Material :
- Phosphor Bronze
- HTS Code :
- 8536.90.40.00
- Heavy Duty :
- No
- Tongue Inside Opening :
- 0.190 (4.83mm)
- ELV :
- Compliant
- Mounting Type :
- Free Hanging (In-Line)
- Wire Cross Section :
- 6.64 mm2
- Wire Gauge (Max) :
- 12 AWG
- Length - Termination :
- 0.278 7.06mm
- Length - Overall :
- 0.777 19.74mm
- Length - Ring Center to Termination :
- 0.276 7.01mm
- Termination :
- Crimp
- Published :
- 2004
- Datasheets
- 53836-2
53836-2 datasheet pdf and Terminals - Spade Connectors product details from TE Connectivity AMP Connectors stock available at Xinshop
