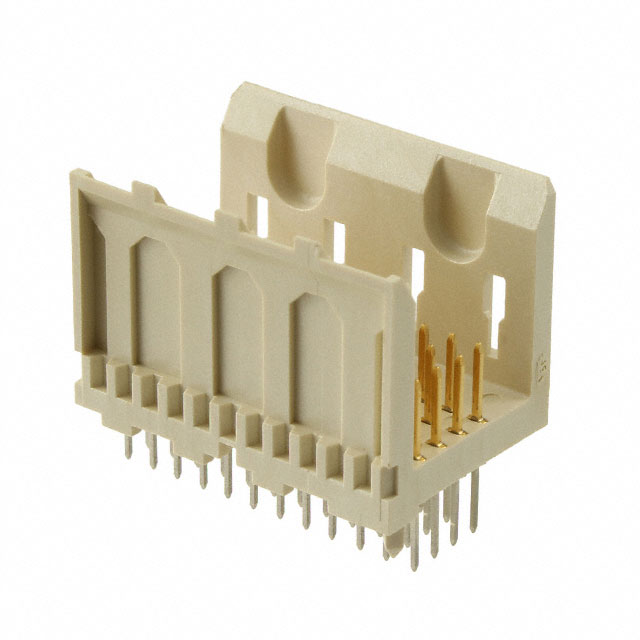

536513-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Specialized

Option :

GENERAL PURPOSE

Row Spacing :

2 mm

Min Operating Temperature :

-55°C

DIN Conformance :

No

PCB Contact Pattern :

RECTANGULAR

Height :

17mm

Voltage - Rated AC :

30V

Sealable :

No

Mounting Type :

Through Hole

MIL Conformance :

No

Number of Positions Loaded :

All

Length - Tail :

4.25mm

Max Voltage Rating (AC) :

30V

Body/Shell Style :

Receptacle

Contact Material :

Bronze

Lead Length :

4.2418mm

Housing Color :

Natural

Contact Finish Thickness - Mating :

1.27μm

ELV :

Compliant

Housing Material :

Polymer

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Circuit Application :

Signal

IEC Conformance :

No

Contact Style :

SQ PIN-SKT

Max Operating Temperature :

125°C

Body Breadth :

0.622 inch

PCB Thickness :

1.3mm

Connector Type :

Header, Male Pins

Contact Pattern :

RECTANGULAR

Lead Free :

Contains Lead

Insertion Force-Max :

.695 N

Factory Lead Time :

23 Weeks

Packaging :

Tube

Body Depth :

0.669 inch

Mating Alignment :

With

Number of Signal Positions :

48

Mount :

Through Hole

Connector Style :

Futurebus

Insulation Resistance :

4mOhm

Gender :

Male

RoHS Status :

Non-RoHS Compliant

Published :

2005

Pitch :

0.079 2.00mm

Mating Post Length :

5mm

Orientation :

Vertical

Contact Finish :

Gold

Polarization Key :

POLARIZED HOUSING

Contact Current Rating :

5A

Mixed Contacts :

No

Series :

Z-PACK

Package / Case :

Module

Filter Feature :

No

Feature :

Board Guide

Termination :

Solder

PCB Mount Retention :

Without

Total Number of Contacts :

48

Width :

16mm

Operating Supply Voltage :

30V

Lifecycle Status :

ACTIVE (Last Updated: 2 weeks ago)

Reliability :

COMMERCIAL

Number Of PCB Rows :

4

Number of Rows :

4

Number of Conductors :

ONE
