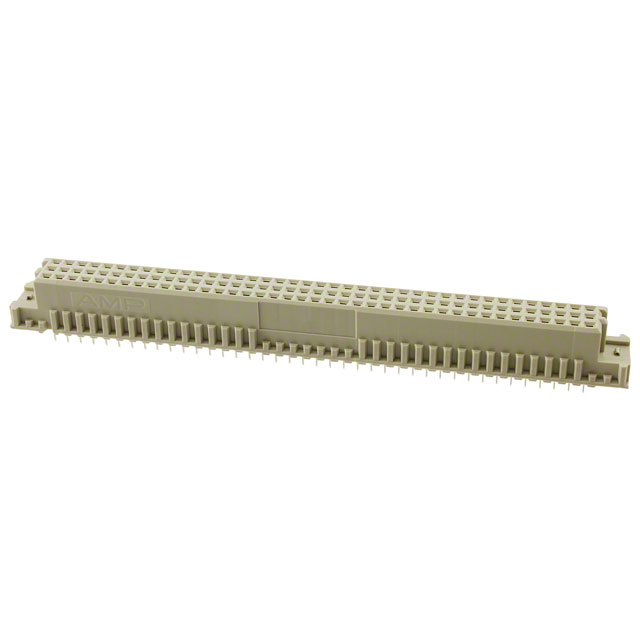

536494-5
Or copy the link below:
- Mfr.Part #
- 536494-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN DIN RCPT 120POS PCB GOLD
- Stock
- 37,722
- In Stock ：
- 37,722
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- DIN 41612
- Connector Type :
- Receptacle, Female Sockets
- Housing Color :
- Grey
- Filter Feature :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Orientation :
- Straight
- Packaging :
- Bulk
- Level, Class :
- 2
- Number of Positions Loaded :
- All
- ELV :
- Compliant
- Make First / Break Last :
- No
- Material - Insulation :
- Polyester, Glass Filled
- Termination :
- Solder
- IEC Conformance :
- yes
- Mounting Type :
- Through Hole
- Contact Finish :
- Gold
- Factory Lead Time :
- 27 Weeks
- Lead Length :
- 3.3mm
- Flammability Rating :
- UL94 V-0
- Mating Information :
- No
- Number of Positions :
- 120
- Number of Rows :
- 3
- Housing Material :
- Glass
- Total Number of Contacts :
- 120
- Option :
- GENERAL PURPOSE
- PCB Mounting Orientation :
- Vertical
- Style :
- C
- DIN Conformance :
- yes
- Feature :
- Board Lock
- Mixed Contacts :
- No
- RoHS Status :
- Non-RoHS Compliant
- UL Flammability Code :
- 94V-0
- MIL Conformance :
- No
- Pitch :
- 0.100 2.54mm
- Published :
- 2005
- Pbfree Code :
- No
- Contact Material :
- Bronze
- Mount :
- Through Hole
- Datasheets
- 536494-5
536494-5 datasheet pdf and Backplane Connectors - DIN 41612 product details from TE Connectivity AMP Connectors stock available at Xinshop
