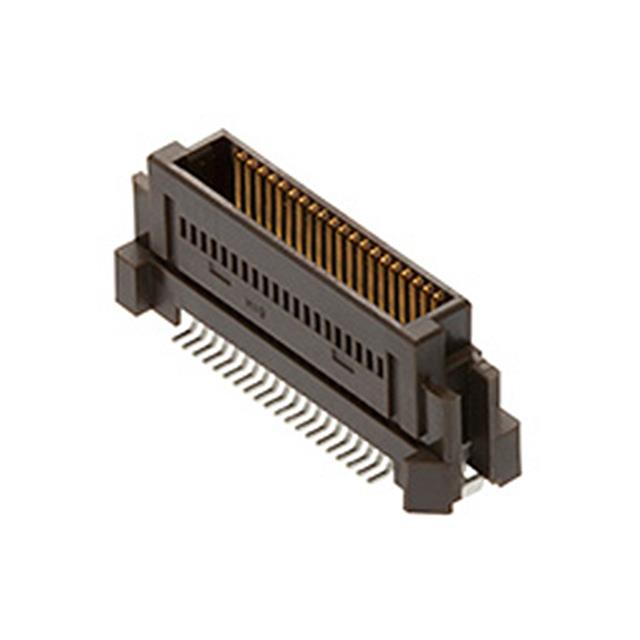

53649-0874

Manufacturer :

Molex

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Rated Current (Signal) :

0.5 A

Mounting :

Surface Mount

Voltage Rating :

100 V

Current Rating (Max) :

0.5/Contact(A)

Housing Color :

Natural

Durability :

30 Cycles

Filter Feature :

No

Base/Housing Material :

Thermoplastic

IEC Conformance :

No

Mounting Angle :

Vertical

Series :

53649

Application :

Board-to-Board

Reliability :

COMMERCIAL

Termination Type :

Surface Mount

Reach Compliance Code :

Compliant

MIL Conformance :

No

Brand :

Molex

Polarization Key :

POLARIZED HOUSING

Body/Shell Style :

PLUG

Tradename :

SlimStack

Product Status :

Active

Plating Thickness :

10u inch

Gender :

PLUG

Minimum Operating Temperature :

- 55 C

Reference Standard :

UL

Contact Gender :

Male

Contact Plating :

Gold

Voltage Rating Max :

100V

Product Depth (mm) :

6.2(mm)

Body Orientation :

Straight

Mixed Contacts :

No

Pitch (mm) :

0.635(mm)

Body Depth :

0.315 inch

Type :

Board to Board

Terminal Pitch :

0.635 mm

Dielectric Withstanding Voltage :

250VAC V

Number of Rows :

2 Row

Insulator Color :

Brown

DIN Conformance :

No

Number of Contacts :

80(POS)

PCB Contact Row Spacing :

4.191 mm

Board Mounting Option :

PEG

Contact Resistance :

70 mΩ

Total Number of Contacts :

80

Contact Pattern :

RECTANGULAR

Product Category :

Board to Board and Mezzanine Connectors

Package :

Box

Number of Contact Rows :

2

Number of Positions :

80 Position

Mounting Option 1 :

LOCKING

Number Of PCB Rows :

2

Product Type :

Board to Board and Mezzanine Connectors

Product Length (mm) :

32.27(mm)

Termination Method :

Solder

Additional Feature :

EMBOSSED PACKAGING

Mounting Style :

Straight

PCB Contact Pattern :

RECTANGULAR

Current Rating :

500 mA

Mating Contact Pitch :

0.025 inch

Contact Material :

NOT SPECIFIED

Body Breadth :

0.205 inch

UL Flammability Code :

94V-0

Pitch :

0.6400 mm

Operating Temperature :

-55 to 85 °C

Option :

GENERAL PURPOSE

Product :

Plugs

RoHS :

Details

Connector Type :

BOARD CONNECTOR

Pbfree Code :

yes

Maximum Operating Temperature :

+ 105 C

Orientation :

Vertical

Insulation Resistance :

1000000000 Ω

Product Height (mm) :

8(mm)

Operating Temp Range :

-55C to 105C

Packaging :

Tape and Reel

Mounting Type :

BOARD

Termination Style :

Solder

Housing Material :

Thermoplastic (TP)
