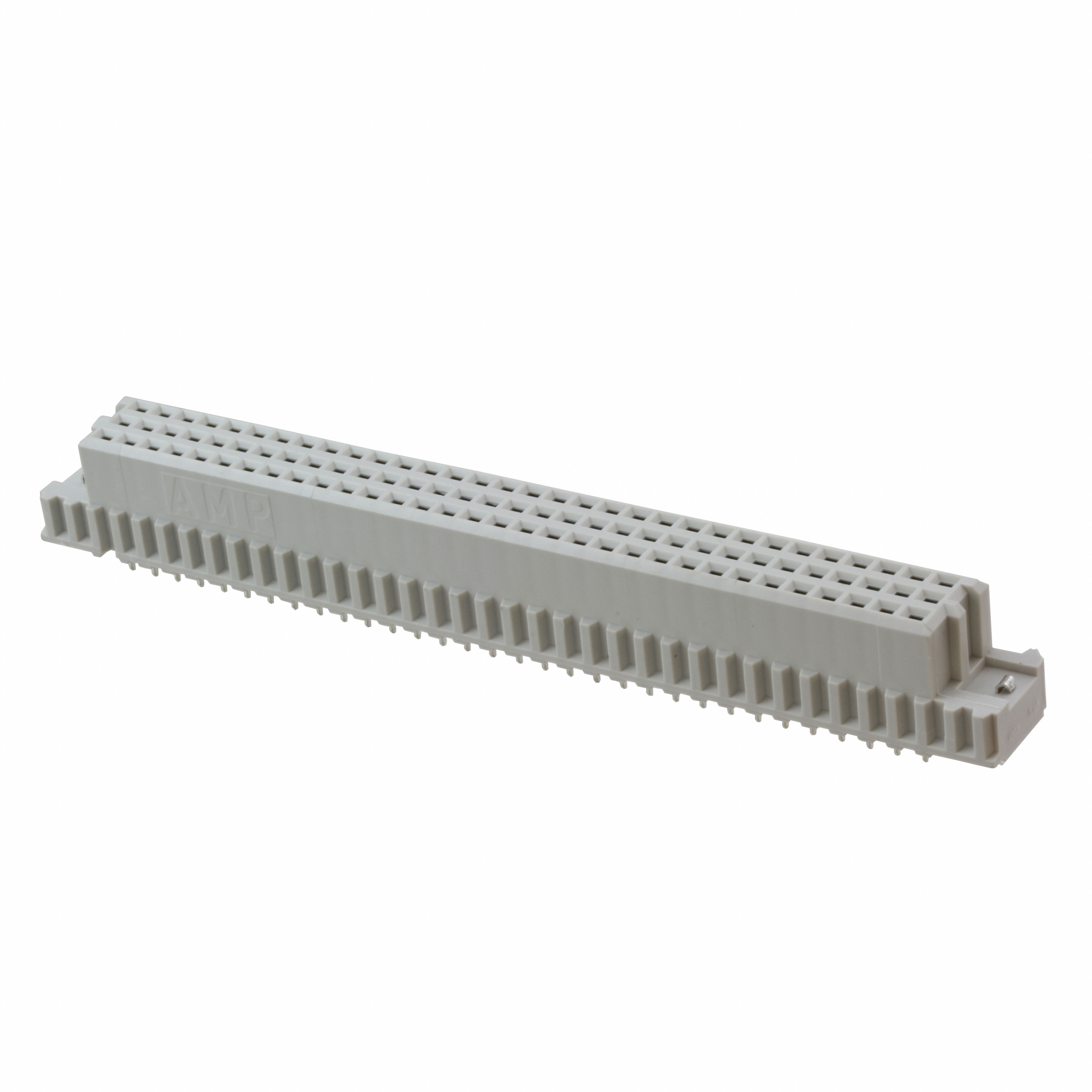

536481-5

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

DIN 41612

Row Spacing :

2.54 mm

Style :

C

Plating Thickness :

760 nm

JESD-609 Code :

e3

Length - Tail :

2.49mm

Operating Temperature :

-55°C~125°C

DIN Conformance :

yes

Contact Resistance :

15mOhm

Connector Type :

Receptacle, Female Sockets

Lifecycle Status :

ACTIVE (Last Updated: 1 week ago)

Width :

10.6mm

ECCN Code :

EAR99

Name of Rows Loaded :

A,C

Termination Post Length :

2.49mm

Current Rating :

1.5A

IEC Conformance :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Material Flammability Rating :

UL94 V-0

Level, Class :

2

Number of Columns :

32

Make First / Break Last :

No

Pbfree Code :

yes

ELV :

Compliant

Length :

94mm

Number of Positions :

96

Number of Signal Positions :

64

Circuit Application :

Signal

Series :

Eurocard

Mixed Contacts :

No

Termination :

Solder

Mount :

Through Hole

Color :

Grey

Polarization Key :

POLARIZED HOUSING

PCB Mounting Orientation :

Vertical

Flammability Rating :

UL94 V-0

Packaging :

Bulk

Number Of PCB Rows :

2

Option :

GENERAL PURPOSE

Shielding :

Unshielded

Lead Length :

2.49mm

Max Current Rating :

1.5A

Material - Insulation :

Polyester, Glass Filled

Total Number of Contacts :

64

Filter Feature :

No

Pitch :

0.100 2.54mm

Feature :

Board Lock

Lead Free :

Contains Lead

Housing Material :

Polyester

Factory Lead Time :

27 Weeks

Contact Material :

Bronze

Insulation Resistance :

1000000000000Ohm

Contact Finish :

Gold

MIL Conformance :

No

Mounting Type :

Through Hole

Published :

1999

RoHS Status :

Non-RoHS Compliant

Height :

11.5mm

Number of Rows :

3
