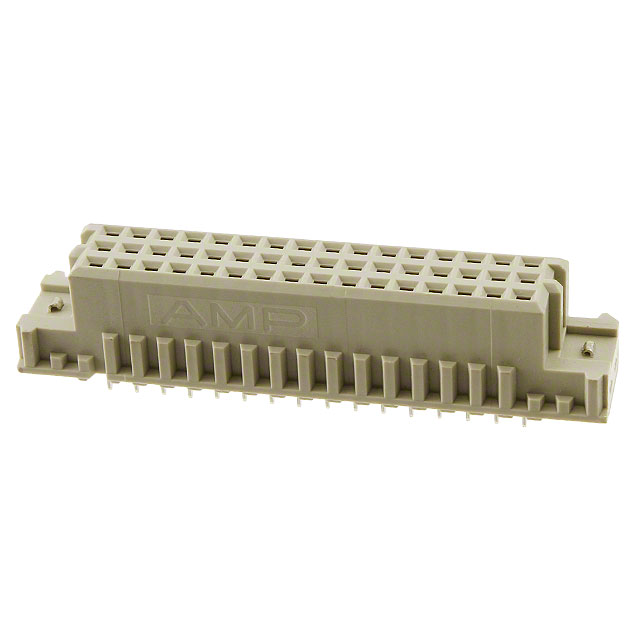

536397-5

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

DIN 41612

Material - Insulation :

Polyester, Glass Filled

PCB Contact Pattern :

RECTANGULAR

Name of Rows Loaded :

A,B,C

Housing Material :

Polyester

Circuit Application :

Signal

Contact Plating :

Lead, Tin

Body Breadth :

0.417 inch

Factory Lead Time :

27 Weeks

Gender :

FEMALE

Max Current Rating :

1.5A

Housing Color :

Grey

Filter Feature :

No

UL Flammability Code :

94V-0

Row Spacing :

2.54 mm

Connector Type :

Receptacle, Female Sockets

DIN Conformance :

yes

Reference Standard :

UL, CSA

Termination :

Solder

Packaging :

Bulk

Lead Free :

Contains Lead

Style :

C/2 (1/2 C)

Series :

Eurocard

Lead Length :

2.49mm

Mating Information :

No

Operating Temperature :

-55°C~125°C

Pitch :

0.100 2.54mm

Option :

GENERAL PURPOSE

IEC Conformance :

yes

RoHS Status :

Non-RoHS Compliant

Termination Post Length :

2.49mm

Shielding :

Unshielded

MIL Conformance :

No

Mixed Contacts :

No

Insulation Resistance :

1000000000000Ohm

Height :

11.5mm

PCB Mounting Orientation :

Vertical

Contact Finish :

Gold

Lifecycle Status :

ACTIVE (Last Updated: 1 week ago)

Pbfree Code :

No

Length - Tail :

2.49mm

Polarization Key :

POLARIZED HOUSING

Number of Rows :

3

Published :

1999

Number Of PCB Rows :

3

Total Number of Contacts :

48

Reliability :

COMMERCIAL

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Signal Positions :

48

Material Flammability Rating :

UL94 V-0

Flammability Rating :

UL94 V-0

Current Rating :

1.5A

Mounting Type :

Through Hole

Contact Material :

Bronze

Dielectric Withstanding Voltage :

1000VAC V

Number of Positions Loaded :

All

Number of Columns :

16

Insulator Color :

Gray

ELV :

Compliant

Mount :

Through Hole

Feature :

Board Lock

Level, Class :

2

Make First / Break Last :

No

ECCN Code :

EAR99

Contact Resistance :

15mOhm
