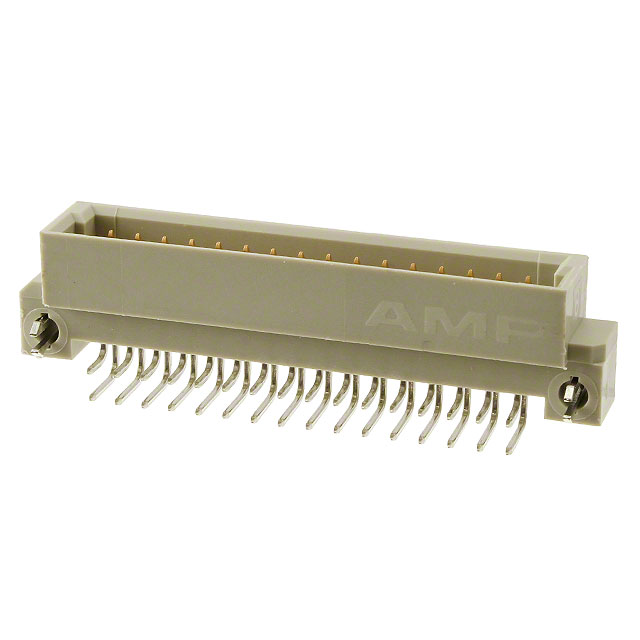

536386-5

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

DIN 41612

Shielding :

Unshielded

Number of Signal Positions :

32

Housing Material :

Polyester

Pitch :

0.100 2.54mm

Filter Feature :

No

Height :

12.6238mm

PCB Mounting Orientation :

RIGHT ANGLE

MIL Conformance :

No

Body Breadth :

0.337 inch

Contact Resistance :

15mOhm

Color :

Grey

PCB Thickness :

1.5748mm

Underplate Material :

Nickel

Length - Tail :

2.64mm

DIN Conformance :

yes

Circuit Application :

Signal

HTS Code :

8536.69.40.40

Orientation :

RIGHT ANGLE

IEC Conformance :

yes

ECCN Code :

EAR99

Insulation Resistance :

1000000000000Ohm

Packaging :

Bulk

Max Voltage Rating (DC) :

250V

Pbfree Code :

No

Plating Thickness :

760 nm

Make First / Break Last :

No

Polarization Key :

POLARIZED HOUSING

Lifecycle Status :

ACTIVE (Last Updated: 4 days ago)

Rated Current (Signal) :

1.5A

Operating Temperature :

-55°C~125°C

Total Number of Contacts :

32

Material - Insulation :

Polyester, Glass Filled

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Positions Loaded :

All

Name of Rows Loaded :

A,B

Factory Lead Time :

25 Weeks

Reliability :

COMMERCIAL

Style :

B

ELV :

Compliant

Connector Type :

Header, Male Pins

Gender :

FEMALE

Reference Standard :

UL, CSA

Flammability Rating :

UL94 V-0

Termination :

Solder

Option :

GENERAL PURPOSE

Depth :

12.65mm

Feature :

Board Lock

Contact Finish :

Gold

Mount :

Through Hole

Contact Material :

Brass

PCB Contact Pattern :

RECTANGULAR

Width :

8.56mm

Dielectric Withstanding Voltage :

1000VAC V

Mounting Type :

Through Hole, Right Angle

Mating Post Length :

4.93mm

Number Of PCB Rows :

2

Mixed Contacts :

No

Published :

1997

RoHS Status :

Non-RoHS Compliant

Termination Post Length :

2.64mm

Row Spacing :

2.54 mm

Number of Columns :

16

Max Voltage Rating (AC) :

250V

Number of Rows :

2

Length :

53.34mm
