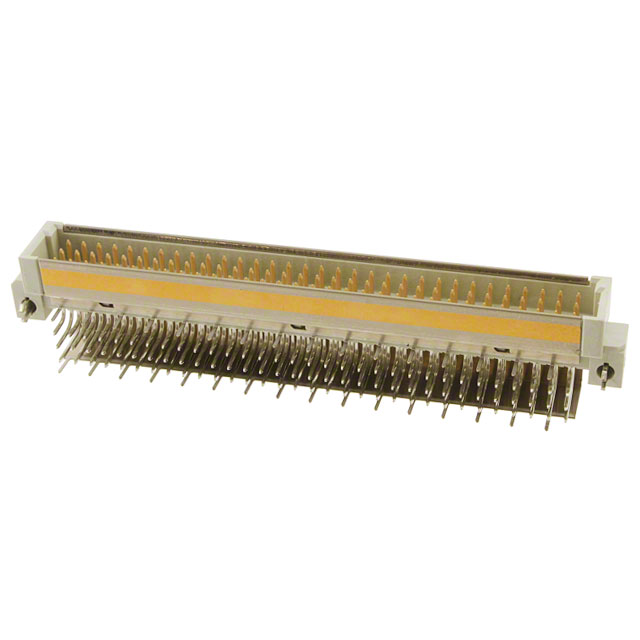

536149-5

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

DIN 41612

Circuit Application :

Signal

Number of Signal Positions :

96

Total Number of Contacts :

96

Number of Positions Loaded :

All

Style :

C

Feature :

Board Lock, Shielded

Lead Length :

3.302mm

Mounting Type :

Through Hole, Right Angle

Filter Feature :

No

Housing Color :

White

Contact Finish :

Gold

Mixed Contacts :

No

Gender :

Male

Mount :

Through Hole

Orientation :

RIGHT ANGLE

Termination Post Length :

3.3mm

Operating Temperature :

-55°C~125°C

ELV :

Compliant

Termination :

Solder

Height :

12.677394mm

Published :

1999

RoHS Status :

Non-RoHS Compliant

DIN Conformance :

yes

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Pitch :

0.100 2.54mm

MIL Conformance :

No

Level, Class :

2

Number of Columns :

32

Series :

Eurocard

Length - Tail :

3.3mm

Plating Thickness :

760 nm

Row Spacing :

2.54 mm

Current Rating :

1.5A

Reference Standard :

UL

Number of Rows :

3

Additional Feature :

AMP

Packaging :

Bulk

Shielding :

Shielded

Housing Material :

Polyester

Polarization Key :

POLARIZED HOUSING

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Number Of PCB Rows :

3

PCB Mounting Orientation :

RIGHT ANGLE

Insulation Resistance :

1000000000000Ohm

Material - Insulation :

Polymer Thermoplastic, Glass Filled

Factory Lead Time :

32 Weeks

Lifecycle Status :

ACTIVE (Last Updated: 5 days ago)

Flammability Rating :

UL94 V-0

Make First / Break Last :

No

Pbfree Code :

No

Length :

93.98mm

Contact Resistance :

15mOhm

Contact Material :

Brass

Max Current Rating :

1.5A

Connector Type :

Header, Male Pins

IEC Conformance :

yes
