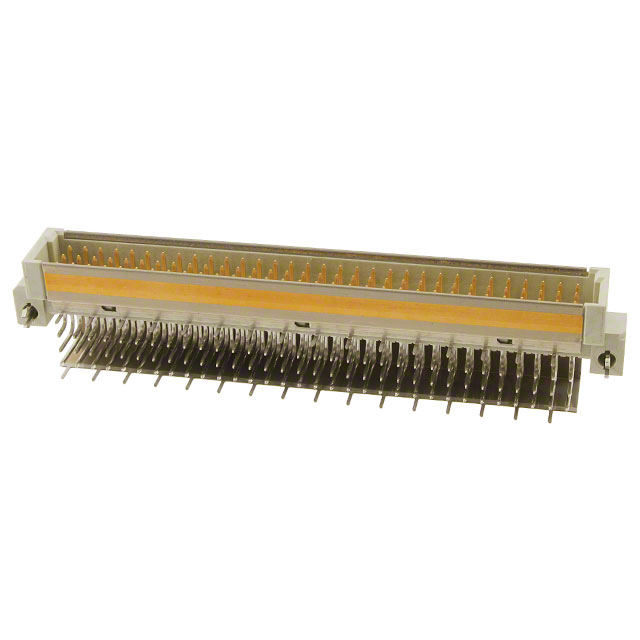

536148-5

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

DIN 41612

Plating Thickness :

760 nm

Filter Feature :

No

Contact Gender :

Male

MIL Conformance :

No

Lead Free :

Contains Lead

ELV :

Compliant

Mount :

Through Hole

Insertion Force-Max :

.9452 N

Body/Shell Style :

Receptacle

Termination :

Solder

Name of Rows Loaded :

A,B,C

Polarization Key :

POLARIZED HOUSING

Number Of PCB Rows :

3

Housing Color :

Grey

Orientation :

RIGHT ANGLE

Pitch :

2.54mm

Max Operating Temperature :

125°C

DIN Conformance :

yes

IEC Conformance :

yes

Contact Plating :

Gold

Min Operating Temperature :

-55°C

Insulation Resistance :

1000000000000Ohm

Number of Rows :

3

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Packaging :

Bulk

Reference Standard :

UL

Height :

12.677394mm

Number of Columns :

32

Insulation Material :

Polymer

Number of Contacts :

96

PCB Contact Pattern :

RECTANGULAR

Mixed Contacts :

No

Pbfree Code :

No

Flammability Rating :

UL94 V-0

Reliability :

COMMERCIAL

Connector Type :

Connector, Pin, Plug

PCB Mounting Orientation :

RIGHT ANGLE

RoHS Status :

Non-RoHS Compliant

Lead Length :

2.64mm

Contact Material :

Brass

Length :

93.96mm

Contact Style :

SQ PIN-SKT

Row Spacing - Mating :

2.54 mm

Insulator Color :

Gray

Dielectric Withstanding Voltage :

1000VAC V

Length - Tail :

2.89mm

Make First / Break Last :

No

Body Depth :

0.8 inch

Contact Resistance :

15mOhm

Additional Feature :

AMP

Shielding :

Shielded

Housing Material :

Polyester
