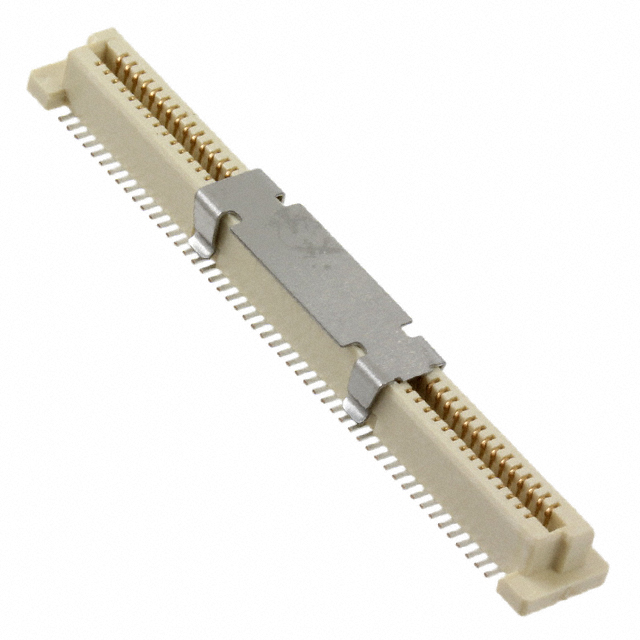

5353999-4
Or copy the link below:
- Mfr.Part #
- 5353999-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 100POS SMD GOLD
- Stock
- 134
- In Stock ：
- 134
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Arrays, Edge Type, Mezzanine (Board to Board)
- Lifecycle Status :
- ACTIVE (Last Updated: 5 months ago)
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Orientation :
- Vertical
- Factory Lead Time :
- 14 Weeks
- Min Operating Temperature :
- -40°C
- Mount :
- Surface Mount
- Number of Rows :
- 2
- Pbfree Code :
- yes
- Housing Color :
- Natural
- Option :
- GENERAL PURPOSE
- Housing Material :
- Polymer
- Height :
- 5mm
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Termination :
- SMD/SMT
- Stack Height :
- 6mm
- ELV :
- Compliant
- Pitch :
- 0.031 0.80mm
- Packaging :
- Tape and Reel (TR)
- Filter Feature :
- No
- Connector Type :
- Receptacle, Outer Shroud Contacts
- Mixed Contacts :
- No
- Insulation Resistance :
- 2MOhm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Finish Thickness - Mating :
- 762 nm
- Preloaded :
- yes
- Number of Positions :
- 100
- Max Operating Temperature :
- 125°C
- Gender :
- Receptacle
- RoHS Status :
- RoHS Compliant
- MIL Conformance :
- No
- IEC Conformance :
- No
- Contact Finish :
- Gold
- Total Number of Contacts :
- 100
- Row Spacing :
- 2.4 mm
- DIN Conformance :
- No
- Feature :
- Board Guide
- Operating Supply Voltage :
- 100V
- Contact Resistance :
- 30mOhm
- ECCN Code :
- EAR99
- PCB Mount Retention :
- Without
- Mounting Type :
- Surface Mount
- Flammability Rating :
- UL94 V-0
- Contact Current Rating :
- 500mA
- Published :
- 2006
- Series :
- Free Height (FH)
- Mating Alignment :
- With
- Sealable :
- No
- HTS Code :
- 8536.69.40.40
- Datasheets
- 5353999-4
Receptacle, Outer Shroud Contacts Tape & Reel (TR) 2 Rows 0.031 0.80mm Surface Mount 100 Positions Free Height (FH) Gold SMD/SMT
5353999-4 Overview
The packaging contains Receptacle, Outer Shroud Contacts.This product is packaged in a case marked Tape & Reel (TR).There is a Surface Mount mounting type for the device.Product number Free Height (FH) belongs to the Free Height (FH) Series.Operating the device, it is possible to maintain Board Guide.This part must be mounted in a Surface Mount socket.Whenever the temperature is below 125°C, it's best.There is a minimum temperature requirement of [0°C] for this device.This device can be used with a 100V supply since it is suitable for operation with this supply.
5353999-4 Features
Free Height (FH) series
Package / Case: Tape & Reel (TR)
Mounting Type:Surface Mount
Max Operating temperature at -40°C
5353999-4 Applications
There are a lot of TE Connectivity AMP Connectors
5353999-4 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
