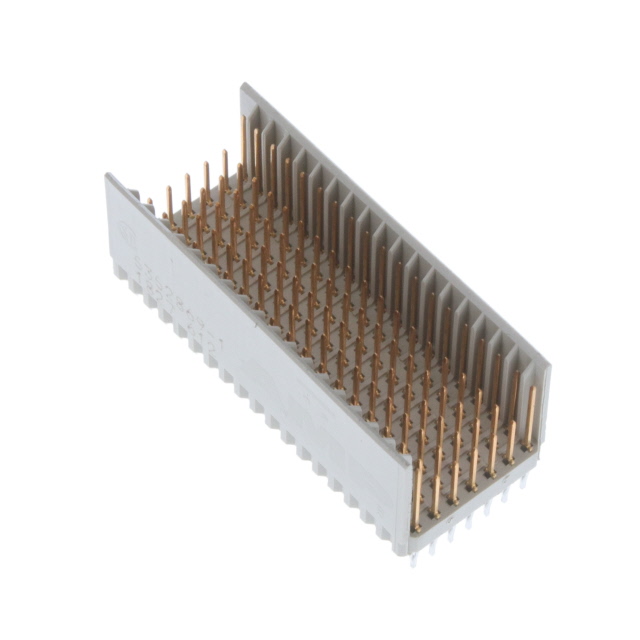

5352869-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Hard Metric, Standard

Contact Finish :

Gold

Option :

GENERAL PURPOSE

Shielding :

Unshielded

Voltage - Rated :

500Vrms

Housing Material :

Polyester

Termination :

Press-Fit

IEC Conformance :

No

Connector Usage :

Backplane

Published :

2010

Plating Thickness :

1.27μm

Orientation :

Vertical

Mount :

Through Hole

Lifecycle Status :

ACTIVE (Last Updated: 4 months ago)

Series :

Z-PACK

Pitch :

0.079 2.00mm

Additional Feature :

SHROUDED

Contact Style :

SQ PIN-SKT

Number of Positions :

133 (95 + 38 Ground)

Filter Feature :

No

Operating Temperature :

-55°C~125°C

Number of Contacts :

133

Packaging :

Tube

Reference Standard :

UL

Flammability Rating :

UL94 V-0

Number Of PCB Rows :

7

Number of Rows :

5 + 2

Contact Material :

Bronze

Connector Type :

Header, Male Pins

PCB Contact Pattern :

RECTANGULAR

Pbfree Code :

yes

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Conductors :

ONE

Contact Pattern :

RECTANGULAR

RoHS Status :

RoHS Compliant

Current Rating :

1.5A

Sealable :

No

HTS Code :

8536.69.40.40

Body/Shell Style :

Receptacle

MIL Conformance :

No

ECCN Code :

EAR99

Polarization Key :

POLARIZED HOUSING

Insulation Resistance :

10000000000Ohm

Contact Resistance :

20mOhm

Length :

37.9mm

Max Current Rating :

1.5A

Mounting Type :

Through Hole

Number of Columns :

19

PCB Contact Row Spacing :

2.0066 mm

Mixed Contacts :

No

ELV :

Compliant

Reliability :

COMMERCIAL

Durability :

250 Cycles

DIN Conformance :

No

Housing Color :

Grey

Mating Contact Row Spacing :

0.079 inch

Insulator Color :

Gray

Circuit Application :

Signal

Number of Positions Loaded :

All

Connector Style :

B 19

Depth :

15.4mm

Factory Lead Time :

14 Weeks

Body Breadth :

0.606 inch
