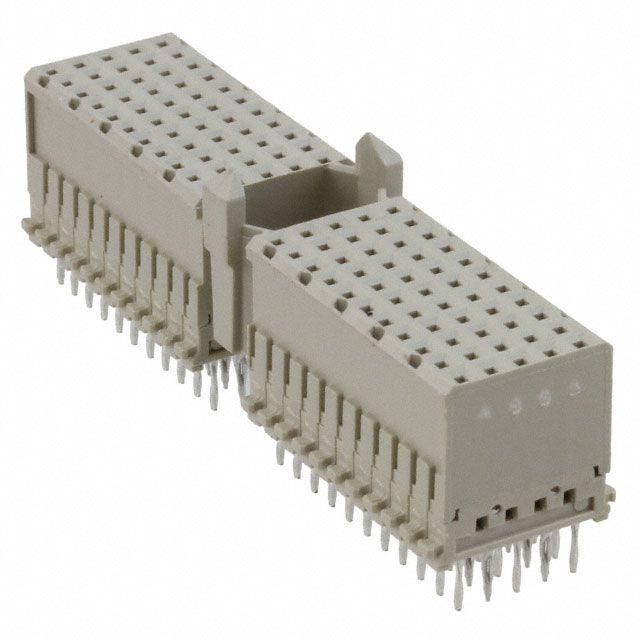

5352457-9
Or copy the link below:
- Mfr.Part #
- 5352457-9
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RECEPT 110POS 2MM PRESS-FIT
- Stock
- 45,949
- In Stock ：
- 45,949
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Hard Metric, Standard
- Housing Color :
- Grey
- Contact Finish :
- Gold
- Mounting Type :
- Through Hole
- Reliability :
- COMMERCIAL
- Connector Style :
- A 22
- Gender :
- FEMALE
- Number of Positions :
- 110
- Factory Lead Time :
- 16 Weeks
- Feature :
- Board Guide
- Housing Material :
- Polyester
- Number of Positions Loaded :
- All
- ELV :
- Compliant
- Contact Material :
- Bronze
- PCB Contact Pattern :
- RECTANGULAR
- Connector Usage :
- Backplane
- RoHS Status :
- RoHS Compliant
- Contact Plating :
- Gold, Tin
- UL Flammability Code :
- 94V-0
- Body Depth :
- 0.472 inch
- Filter Feature :
- No
- Contact Resistance :
- 20mOhm
- Contact Style :
- SQ PIN-SKT
- Option :
- GENERAL PURPOSE
- Number Of PCB Rows :
- 5
- Current Rating :
- 1.5A
- Radiation Hardening :
- No
- Series :
- Z-PACK
- Flammability Rating :
- UL94 V-0
- Insulator Color :
- Gray
- Packaging :
- Tube
- Polarization Key :
- POLARIZED HOUSING
- DIN Conformance :
- No
- Number of Rows :
- 5
- Termination :
- Press-Fit
- Operating Temperature :
- -55°C~125°C
- Shielding :
- Unshielded
- Published :
- 2012
- Total Number of Contacts :
- 110
- ECCN Code :
- EAR99
- Lead Free :
- Not Applicable
- Contact Pattern :
- RECTANGULAR
- Connector Type :
- Receptacle, Female Sockets
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insulation Resistance :
- 1000000000Ohm
- Number of Conductors :
- ONE
- Pbfree Code :
- yes
- Pitch :
- 0.079 2.00mm
- Mixed Contacts :
- No
- Voltage - Rated :
- 500Vrms
- Length :
- 49.95mm
- MIL Conformance :
- No
- Mating Contact Row Spacing :
- 0.079 inch
- Body Breadth :
- 0.482 inch
- Mount :
- Through Hole
- IEC Conformance :
- No
- PCB Contact Row Spacing :
- 2.0066 mm
- Reference Standard :
- UL
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Orientation :
- Vertical
- Datasheets
- 5352457-9
