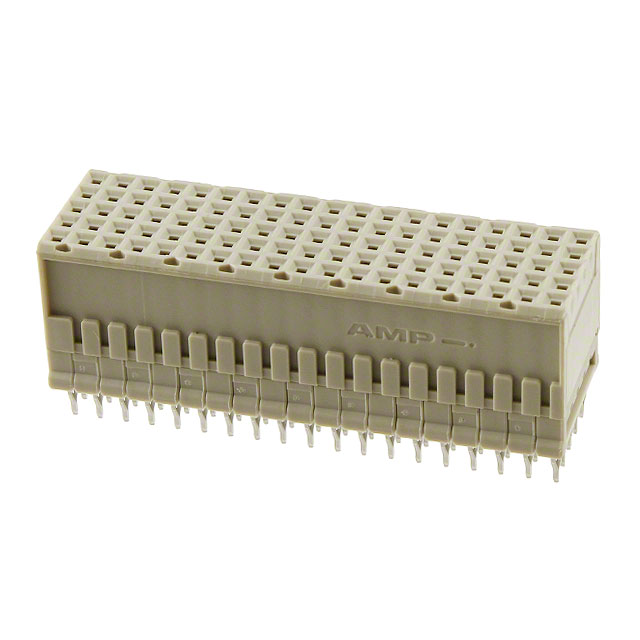

5352269-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Hard Metric, Standard

DIN Conformance :

No

Sealable :

No

Flammability Rating :

UL94 V-0

Pbfree Code :

yes

Make First / Break Last :

yes

Connector Usage :

Backplane

ECCN Code :

EAR99

Mount :

Through Hole

Depth :

11.8mm

Current Rating :

1.5A

Contact Material :

Bronze

RoHS Status :

RoHS Compliant

Shielding :

Unshielded

Mating Contact Row Spacing :

0.079 inch

Mixed Contacts :

No

Number of Rows :

5

Max Current Rating :

1.5A

Plating Thickness :

1.27μm

IEC Conformance :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

MIL Conformance :

No

Reference Standard :

UL

Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

Contact Resistance :

20mOhm

Termination :

Press-Fit

Number Of PCB Rows :

5

Series :

Z-PACK

Insulation Resistance :

10000000000Ohm

Total Number of Contacts :

95

Factory Lead Time :

16 Weeks

Contact Finish Thickness :

30.0μin 0.76μm

Mounting Type :

Through Hole

Packaging :

Tray

Housing Color :

Grey

Published :

2004

Length :

37.95mm

PCB Contact Row Spacing :

2.0066 mm

Option :

GENERAL PURPOSE

PCB Contact Pattern :

RECTANGULAR

Additional Feature :

STANDARD: IEC 61076-4-101

Number of Positions :

95

Housing Material :

Polyester

Connector Type :

Receptacle, Female Sockets

Reliability :

COMMERCIAL

Voltage - Rated :

500Vrms

Operating Temperature :

-55°C~125°C

Contact Pattern :

RECTANGULAR

Filter Feature :

No

Contact Style :

SQ PIN-SKT

Contact Finish :

Gold

Pitch :

0.079 2.00mm

Number of Columns :

19

Number of Positions Loaded :

All

Gender :

Receptacle

Insulator Color :

Gray

ELV :

Compliant

Orientation :

Vertical

JESD-609 Code :

e4

UL Flammability Code :

94V-0

Connector Style :

B 19

Lead Free :

Not Applicable

Number of Conductors :

ONE

Polarization Key :

POLARIZED HOUSING
