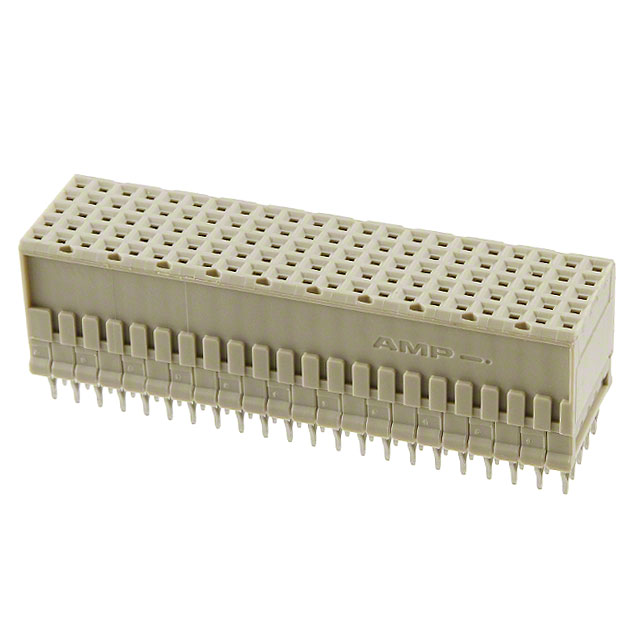

5352268-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Hard Metric, Standard

HTS Code :

8536.69.40.40

Body Breadth :

0.464 inch

Number of Rows :

5 + 1

Insulation Resistance :

1000000000Ohm

Withdrawl Force-Min :

.15012 N

Series :

Z-PACK

Insertion Force-Max :

.7506 N

IEC Conformance :

No

Factory Lead Time :

14 Weeks

Pbfree Code :

yes

Mount :

Through Hole

DIN Conformance :

No

Durability :

250 Cycles

Depth :

11.4mm

Filter Feature :

No

Housing Color :

Grey

Number of Columns :

22

Contact Pattern :

RECTANGULAR

Gender :

Receptacle

Voltage - Rated :

500Vrms

Make First / Break Last :

yes

Housing Material :

Polyester

Reliability :

COMMERCIAL

Termination :

Press-Fit

Number Of PCB Rows :

5

ELV :

Compliant

Orientation :

Vertical

Contact Finish Thickness :

30.0μin 0.76μm

Connector Style :

B 22

Contact Finish :

Gold

Published :

2007

Number of Contacts :

110

Number of Positions :

120 (110 + 10 Ground)

Option :

GENERAL PURPOSE

Connector Type :

Receptacle, Female Sockets

Plating Thickness :

1.27μm

Reference Standard :

UL

Packaging :

Bulk

Current Rating :

1.5A

PCB Contact Pattern :

RECTANGULAR

Max Current Rating :

1.5A

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Feature :

Upper Shield

Polarization Key :

POLARIZED HOUSING

Contact Style :

SQ PIN-SKT

Connector Usage :

Backplane

Dielectric Withstanding Voltage :

750VAC V

Lead Free :

Not Applicable

Row Spacing :

2 mm

Sealable :

No

Number of Positions Loaded :

All

Mixed Contacts :

No

UL Flammability Code :

94V-0

Insulator Color :

Gray

Contact Material :

Bronze

ECCN Code :

EAR99

Shielding :

Unshielded

Pitch :

0.079 2.00mm

RoHS Status :

RoHS Compliant

Length :

43.9mm

Number of Conductors :

ONE

REACH SVHC :

Unknown

Lifecycle Status :

ACTIVE (Last Updated: 1 week ago)

Mounting Type :

Through Hole

MIL Conformance :

No

Flammability Rating :

UL94 V-0

Operating Temperature :

-55°C~125°C
