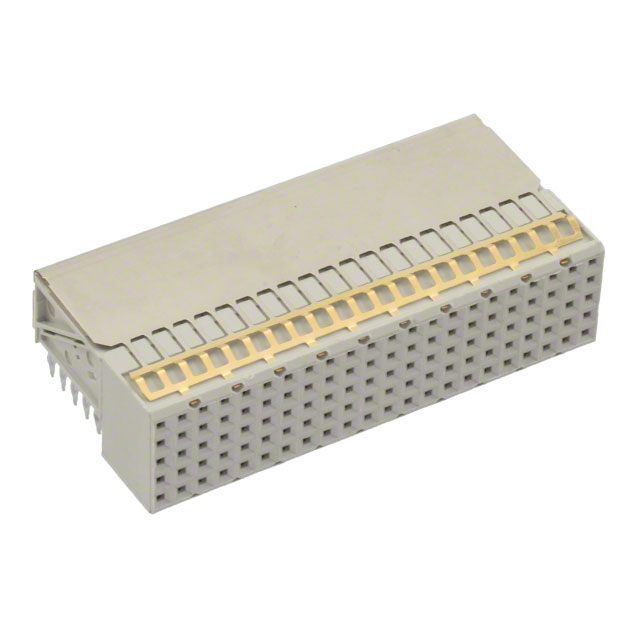

5352152-4

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Hard Metric, Standard

Withdrawl Force-Min :

.15012 N

Plating Thickness :

1.27μm

Connector Type :

Receptacle, Female Sockets

Max Voltage Rating (AC) :

500V

DIN Conformance :

No

Contact Resistance :

20mOhm

Lead Pitch :

2mm

Number Of PCB Rows :

5

PCB Contact Pattern :

RECTANGULAR

Orientation :

RIGHT ANGLE

Number of Columns :

22

Mixed Contacts :

No

Max Current Rating :

1.5A

Pbfree Code :

yes

Number of Rows :

5 + 1

Gender :

Receptacle

Durability :

250 Cycles

PCB Contact Row Spacing :

2.0066 mm

Insulator Color :

Gray

Lead Free :

Not Applicable

MIL Conformance :

No

Number of Contacts :

110

Housing Material :

Polyester

Sealable :

No

Housing Color :

Grey

Length :

43.9mm

Factory Lead Time :

13 Weeks

Contact Finish Thickness :

50.0μin 1.27μm

RoHS Status :

RoHS Compliant

Packaging :

Tray

Make First / Break Last :

yes

Current Rating :

1.5A

Connector Style :

B 22

Mating Contact Row Spacing :

0.079 inch

ELV :

Compliant

Insulation Resistance :

1000000000Ohm

Shielding :

Shielded

Flammability Rating :

UL94 V-0

Number of Positions Loaded :

All

Mount :

Through Hole

Series :

Z-PACK

Insertion Force-Max :

.7506 N

Voltage - Rated :

500Vrms

Connector Usage :

CompactPCI J2/J5

Lifecycle Status :

ACTIVE (Last Updated: 5 days ago)

Reliability :

COMMERCIAL

Body Breadth :

0.449 inch

Feature :

Upper Shield

Depth :

21mm

Contact Material :

Bronze

IEC Conformance :

No

HTS Code :

8536.69.40.40

ECCN Code :

EAR99

Option :

GENERAL PURPOSE

Polarization Key :

POLARIZED HOUSING

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Conductors :

ONE

Termination :

Press-Fit

Contact Pattern :

RECTANGULAR

Published :

2007

Number of Positions :

120 (110 + 10 Ground)

Contact Finish :

Gold

Pitch :

0.079 2.00mm

Filter Feature :

No

PCB Mounting Orientation :

RIGHT ANGLE

Reference Standard :

UL

Operating Temperature :

-55°C~125°C

Contact Style :

SQ PIN-SKT

Mounting Type :

Through Hole, Right Angle
