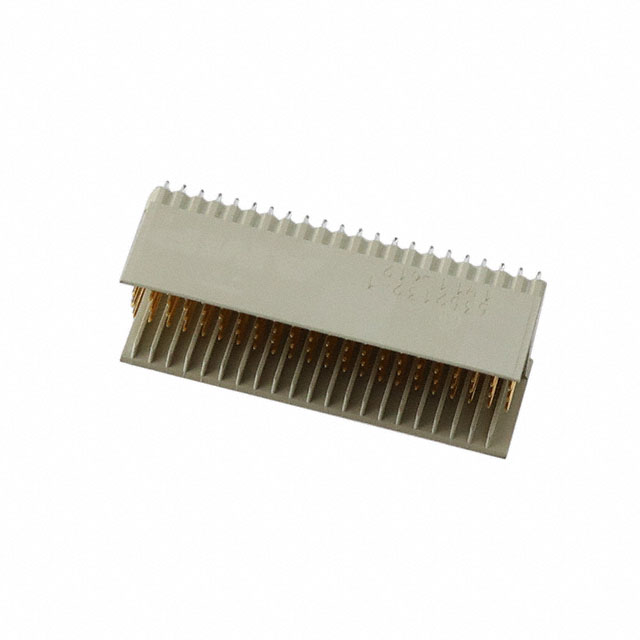

5352132-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Hard Metric, Standard

Current Rating :

1.5A

Total Number of Contacts :

110

Plating Thickness :

1.27μm

Voltage - Rated :

500Vrms

MIL Conformance :

No

Mating Contact Row Spacing :

0.079 inch

Pbfree Code :

yes

Mixed Contacts :

No

Connector Usage :

Backplane

RoHS Status :

RoHS Compliant

Housing Color :

Grey

Flammability Rating :

UL94 V-0

Termination :

Press-Fit

Housing Material :

Polyester

JESD-609 Code :

e3

Mounting Type :

Through Hole

Mount :

Through Hole

Filter Feature :

No

Operating Temperature :

-55°C~125°C

Number of Positions :

110

DIN Conformance :

No

Lead Free :

Not Applicable

PCB Contact Row Spacing :

2.0066 mm

Depth :

15.4mm

Max Current Rating :

1.5A

Gender :

Male

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Series :

Z-PACK

Option :

GENERAL PURPOSE

Number of Rows :

5

Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

Reliability :

COMMERCIAL

ELV :

Compliant

Number Of PCB Rows :

5

Sealable :

No

Number of Columns :

22

ECCN Code :

EAR99

Reference Standard :

UL

Number of Conductors :

ONE

Insulation Resistance :

10000000000Ohm

Pitch :

0.079 2.00mm

Polarization Key :

POLARIZED HOUSING

IEC Conformance :

No

PCB Contact Pattern :

RECTANGULAR

Contact Resistance :

20mOhm

Length :

43.9mm

Number of Positions Loaded :

All

Orientation :

Vertical

Factory Lead Time :

23 Weeks

Contact Material :

Bronze

Connector Type :

Header, Male Pins

Contact Finish :

Gold

Make First / Break Last :

yes

Published :

2007

Contact Style :

SQ PIN-SKT

Body/Shell Style :

PLUG

Shielding :

Unshielded

Contact Pattern :

RECTANGULAR

Insulator Color :

Gray

Body Breadth :

0.606 inch

Packaging :

Tube

Connector Style :

B 22
