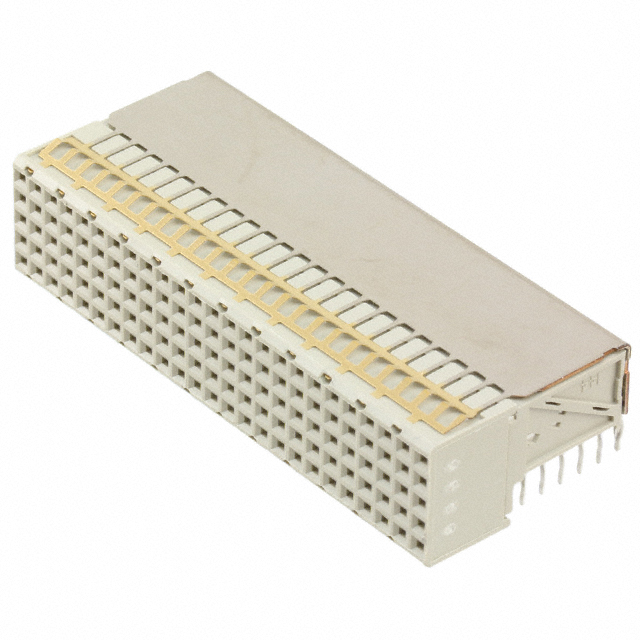

5352069-9
Or copy the link below:
- Mfr.Part #
- 5352069-9
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RECEPT 125POS 2MM PRESS-FIT
- Stock
- 1,109
- In Stock ：
- 1,109
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Hard Metric, Standard
- Number Of PCB Rows :
- 5
- Operating Temperature :
- -55°C~125°C
- Total Number of Contacts :
- 125
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Packaging :
- Tube
- Contact Style :
- SQ PIN-SKT
- Number of Conductors :
- ONE
- Filter Feature :
- No
- Current Rating :
- 1.5A
- Pitch :
- 0.079 2.00mm
- Number of Columns :
- 25
- Withdrawl Force-Min :
- .14734 N
- Max Current Rating :
- 1.5A
- PCB Contact Row Spacing :
- 2.0066 mm
- Contact Finish Thickness :
- 50.0μin 1.27μm
- Shielding :
- Shielded
- Number of Positions :
- 125
- Make First / Break Last :
- yes
- Feature :
- Upper Shield
- Lifecycle Status :
- ACTIVE (Last Updated: 6 days ago)
- Voltage - Rated :
- 500Vrms
- Pbfree Code :
- yes
- Mounting Type :
- Through Hole, Right Angle
- PCB Contact Pattern :
- RECTANGULAR
- Insulation Resistance :
- 10000000000Ohm
- Reference Standard :
- UL
- ELV :
- Compliant
- Lead Free :
- Not Applicable
- Orientation :
- RIGHT ANGLE
- Gender :
- Receptacle
- Body Breadth :
- 0.449 inch
- MIL Conformance :
- No
- Published :
- 2007
- Option :
- GENERAL PURPOSE
- PCB Mounting Orientation :
- RIGHT ANGLE
- Contact Resistance :
- 20mOhm
- Number of Positions Loaded :
- All
- Series :
- Z-PACK
- ECCN Code :
- EAR99
- DIN Conformance :
- No
- Reliability :
- COMMERCIAL
- Flammability Rating :
- UL94 V-0
- Mount :
- Through Hole
- Contact Material :
- Bronze
- Insulator Color :
- Gray
- Contact Pattern :
- RECTANGULAR
- Number of Rows :
- 5
- Contact Finish :
- Gold
- RoHS Status :
- RoHS Compliant
- Length :
- 49.95mm
- Mating Contact Row Spacing :
- 0.079 inch
- Depth :
- 21mm
- IEC Conformance :
- No
- Housing Color :
- Grey
- Housing Material :
- Polyester
- Connector Type :
- Receptacle, Female Sockets
- Mixed Contacts :
- No
- Plating Thickness :
- 1.27μm
- Polarization Key :
- POLARIZED HOUSING
- Factory Lead Time :
- 11 Weeks
- Termination :
- Press-Fit
- Connector Style :
- B 25
- Sealable :
- No
- Datasheets
- 5352069-9
