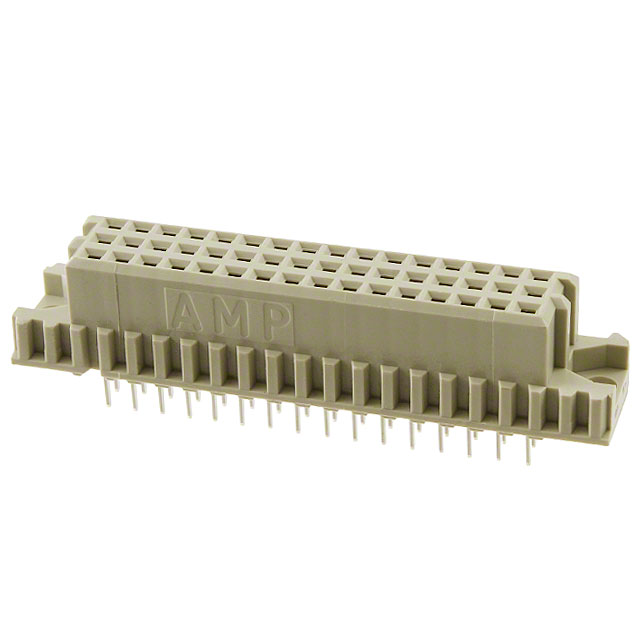

535071-5

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

DIN 41612

Lead Pitch :

2.54mm

Make First / Break Last :

No

PCB Mounting Orientation :

Vertical

RoHS Status :

Non-RoHS Compliant

Current Rating :

1.5A

PCB Contact Pattern :

RECTANGULAR

Height :

11.51mm

Material - Insulation :

Polyester, Glass Filled

Published :

1999

Termination :

Solder

Option :

GENERAL PURPOSE

Pbfree Code :

No

Mating Information :

No

Factory Lead Time :

27 Weeks

Level, Class :

2

Filter Feature :

No

Polarization Key :

POLARIZED HOUSING

Row Spacing :

2.54 mm

Total Number of Contacts :

48

Housing Material :

Polyester

Number of Rows :

3

Body Breadth :

0.417 inch

UL Flammability Code :

94V-0

Connector Type :

Receptacle, Female Sockets

IEC Conformance :

yes

Mount :

Through Hole

Circuit Application :

Signal

Reference Standard :

UL, CSA

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Resistance :

15mOhm

Contact Material :

Bronze

Max Current Rating :

1.5A

Name of Rows Loaded :

A,B,C

Insulation Resistance :

1000000000000Ohm

ECCN Code :

EAR99

Operating Temperature :

-55°C~125°C

Reliability :

COMMERCIAL

Style :

C/2 (1/2 C)

Flammability Rating :

UL94 V-0

Mounting Type :

Through Hole

ELV :

Compliant

Lifecycle Status :

ACTIVE (Last Updated: 4 months ago)

Series :

Eurocard

MIL Conformance :

No

Plating Thickness :

760 nm

Mixed Contacts :

No

Material Flammability Rating :

UL94 V-0

Number Of PCB Rows :

3

Shielding :

Unshielded

Dielectric Withstanding Voltage :

1000VAC V

Lead Free :

Contains Lead

Lead Length :

4.572mm

Gender :

FEMALE

Color :

Grey

Contact Finish :

Gold

Termination Post Length :

4.57mm

Number of Signal Positions :

48

Pitch :

0.100 2.54mm

Length - Tail :

4.57mm

Packaging :

Bulk

DIN Conformance :

yes

Number of Columns :

16

Number of Positions Loaded :

All
