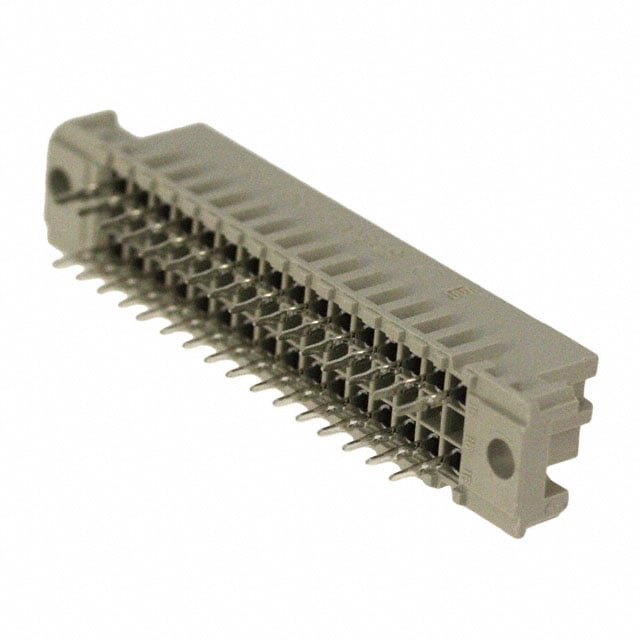

535068-5

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

DIN 41612

Row Spacing :

2.54 mm

Series :

Eurocard

Length - Tail :

4.83mm

Factory Lead Time :

11 Weeks

Mating Information :

No

Name of Rows Loaded :

A,C

UL Flammability Code :

94V-0

Packaging :

Bulk

Level, Class :

2

Height :

11.5mm

Color :

Grey

Insulation Resistance :

1000000000000Ohm

ELV :

Non-Compliant

Length :

53.34mm

Total Number of Contacts :

32

Pbfree Code :

yes

Gender :

FEMALE

Style :

C/2 (1/2 C)

Mixed Contacts :

No

Filter Feature :

No

Contact Material :

Bronze

Termination :

Press-Fit

Orientation :

Vertical

Mount :

Through Hole

Lead Length :

4.826mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Current Rating :

1.5A

Number of Positions Loaded :

32

Shielding :

Unshielded

Number Of PCB Rows :

3

Number of Rows :

3

PCB Thickness :

1.5748mm

Flammability Rating :

UL94 V-0

Contact Resistance :

15mOhm

Depth :

10.6mm

Lead Free :

Lead Free

Pitch :

0.100 2.54mm

Body Breadth :

0.417 inch

DIN Conformance :

yes

Number of Positions :

48

MIL Conformance :

No

Make First / Break Last :

No

Reference Standard :

UL, CSA

Lead Pitch :

2.54mm

Material - Insulation :

Polyester, Glass Filled

Contact Finish :

Gold

Max Voltage Rating (AC) :

250V

ECCN Code :

EAR99

Number of Columns :

16

IEC Conformance :

yes

Mounting Type :

Through Hole

RoHS Status :

Non-RoHS Compliant

Material Flammability Rating :

UL94 V-0

Option :

GENERAL PURPOSE

Connector Type :

Receptacle, Female Sockets

PCB Contact Pattern :

RECTANGULAR

Polarization Key :

POLARIZED HOUSING

Reliability :

COMMERCIAL

Dielectric Withstanding Voltage :

1000VAC V

Housing Material :

Polyester

Published :

1999

Operating Temperature :

-55°C~125°C

Plating Thickness :

760 nm
