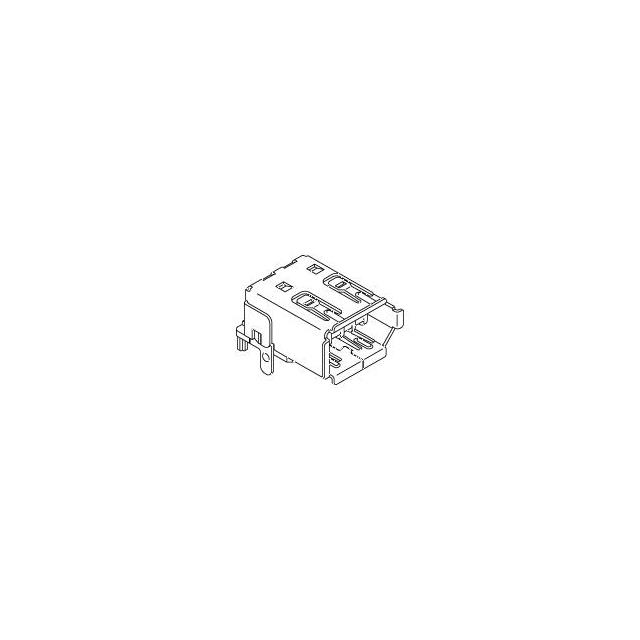

53462-0001

Manufacturer :

Molex

Product Category :

Unclassified

Housing Material :

Nylon 4/6

Contact Material :

Brass

Pitch :

2 mm

Type :

IEEE 1394

Subcategory :

IEEE 1394 Connectors

Package :

Box

Product :

IEEE 1394 Connectors

Mounting Style :

Surface Mount

Pitch (mm) :

1(mm)

Number of Positions :

6 Position

Number of Contacts :

6(POS)

Current Rating (Max) :

1.5/Contact(A)

Handle Type :

Swinghandle Key Operated

Mounting Orientation :

Universal

Product Height (mm) :

8.7(mm)

Number of Ports :

1(Port)

Maximum Operating Temperature :

+85°C

Key Type :

Keyed Different

Manufacturer :

Molex

Voltage Rating Max :

40V

Mounting Angle :

RIGHT ANGLE

Gender :

F

Operating Temperature Min Deg. C :

-25C

Includes :

Cam Sold Separately. Two keys supplied with each latch

Voltage Rating :

40 V

RoHS :

Details

Connector Type :

Firewire IEEE-1394

Product Status :

Active

Packaging :

Tape and Reel

Product Depth (mm) :

16.2(mm)

Number of Terminals :

6

Mounting Type :

Surface Mount

Product Category :

IEEE 1394 Connectors

Package Quantity :

1

Termination Style :

Through Hole

Operating Temperature Max Deg. C :

85C

Contact Plating :

Gold Over Nickel

Body Orientation :

RIGHT ANGLE

Current Rating :

1.5A

Color :

Black

Head Height :

12.0 mm

Product Length (mm) :

13.1(mm)

Operating Temp Range :

-25C to 85C

Series :

53462

Product Type :

IEEE 1394 Connectors

Handle Length :

110.0 mm

Brand :

Molex

Minimum Operating Temperature :

-25°C

Termination Method :

Solder
