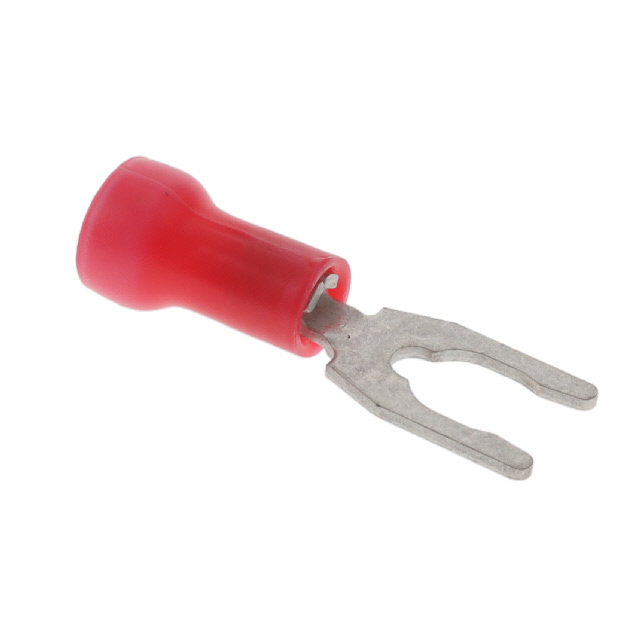

53242-5
Or copy the link below:
- Mfr.Part #
- 53242-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN SPADE TERM 16-22AWG #10 RED
- Stock
- 585
- In Stock ：
- 585
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Spade Connectors
- Insulation Diameter :
- 0.150 ~ 0.200 (3.81mm ~ 5.08mm)
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Length - Overall :
- 0.969 24.60mm
- Insulated Wire Support :
- yes
- Terminal Gender :
- FEMALE
- HTS Code :
- 8536.90.40.00
- Termination :
- Crimp
- Mounting Type :
- Free Hanging (In-Line)
- Contact Material :
- Brass
- Tongue Thickness :
- 790μm
- Width - Outer Edges :
- 0.294 7.47mm
- RoHS Status :
- RoHS Compliant
- Tongue Inside Opening :
- 0.190 (4.83mm)
- Stud/Tab Size :
- 10 Stud
- Voltage - Rated :
- 600V
- Feature :
- Serrated Termination
- Contact Finish :
- Tin
- Factory Lead Time :
- 15 Weeks
- Wire Cross Section :
- 1.65 mm2
- Wire Gauge :
- 16-22 AWG
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- ELV :
- Compliant
- Series :
- Plasti-Grip
- Width :
- 7.47mm
- Wire/Cable Diameter :
- 5.08 mm
- Stud Diameter :
- 4.826 mm
- Heavy Duty :
- No
- Color :
- Red
- Lead Free :
- Not Applicable
- Published :
- 2008
- Terminal Type :
- Spring, Snap
- Packaging :
- Bulk
- Length :
- 24.6126mm
- Length - Termination :
- 0.465 11.81mm
- Material - Insulation :
- Poly-Vinyl Chloride (PVC)
- ECCN Code :
- EAR99
- Diameter - Inside :
- 5.1 mm
- Terminal and Terminal Block Type :
- FORK TERMINAL
- Length - Ring Center to Termination :
- 0.281 7.14mm
- Insulation :
- Insulated
- Datasheets
- 53242-5
