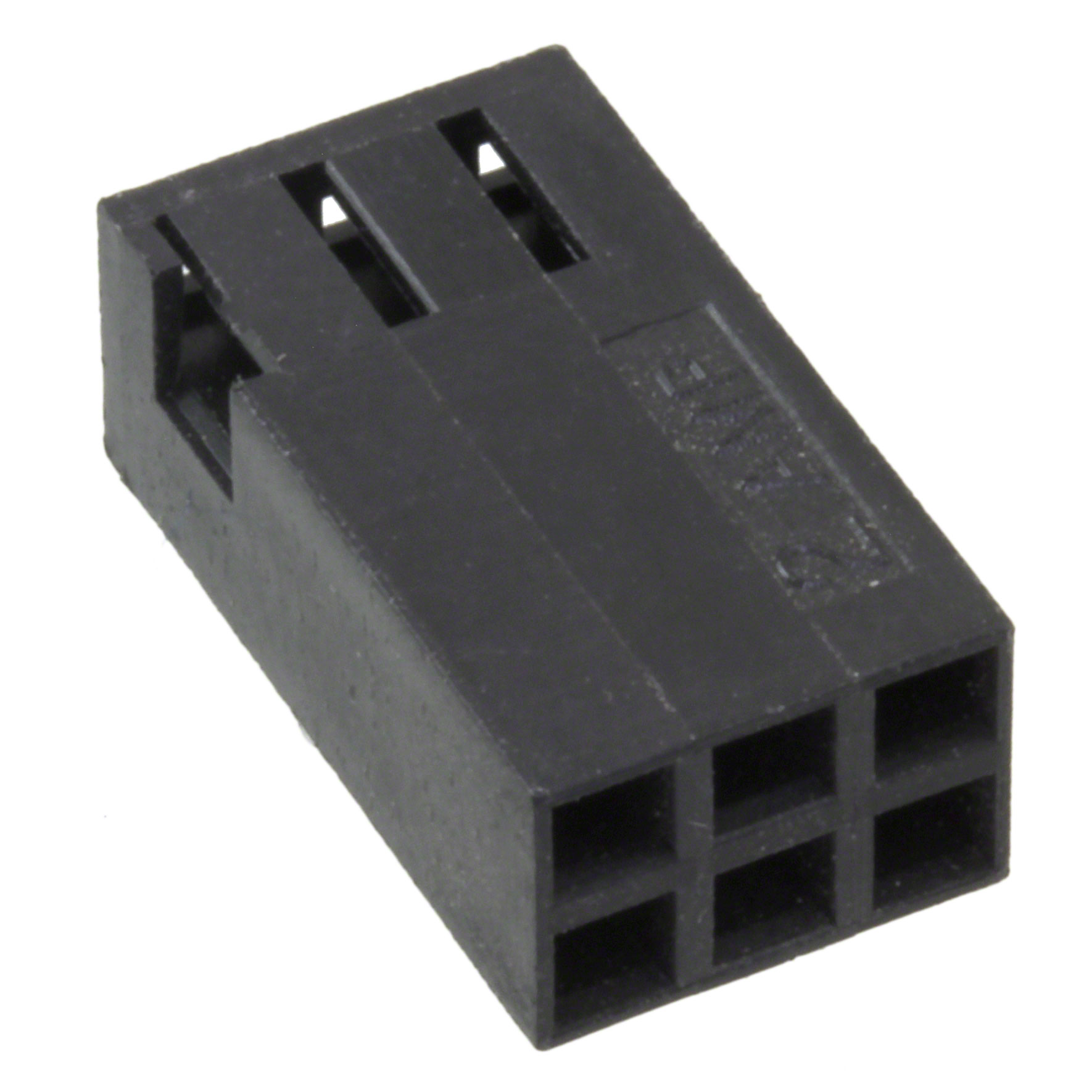

530902-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Rectangular Connector Housings

ECCN Code :

EAR99

Series :

AMPMODU

Reliability :

COMMERCIAL

Wire Gauge (Max) :

30 AWG

RoHS Status :

RoHS Compliant

Lead Free :

Not Applicable

Mount :

Cable, Free Hanging

Max Operating Temperature :

105°C

Contact Type :

Female Socket

Row Spacing :

0.100 (2.54mm)

Filter Feature :

No

UL Flammability Code :

94V-0

Reference Standard :

UL

Pitch :

0.100 2.54mm

Length :

7.62mm

Rated Current (Signal) :

3A

Pbfree Code :

yes

ELV :

Compliant

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Contact Design :

STRIP OR LOOSE

Orientation :

Straight

Number of Positions :

6

Wire Gauge (Min) :

22 AWG

Keyed :

No

MIL Conformance :

No

Note :

Contacts Not Included

Flammability Rating :

UL94 V-2

Color :

Black

Mixed Contacts :

No

Mounting Type :

Free Hanging (In-Line)

Connector Type :

Receptacle

Housing Material :

Thermoplastic

Contact Termination :

Crimp

Factory Lead Time :

9 Weeks

Total Number of Contacts :

6

Number of Rows :

2

IEC Conformance :

No

Published :

2008

Wire/Cable Gauge :

30 AWG

Min Operating Temperature :

-65°C

Depth :

13.97mm

Option :

GENERAL PURPOSE

DIN Conformance :

No

Packaging :

Bulk

Moisture Sensitivity Level (MSL) :

1 (Unlimited)
