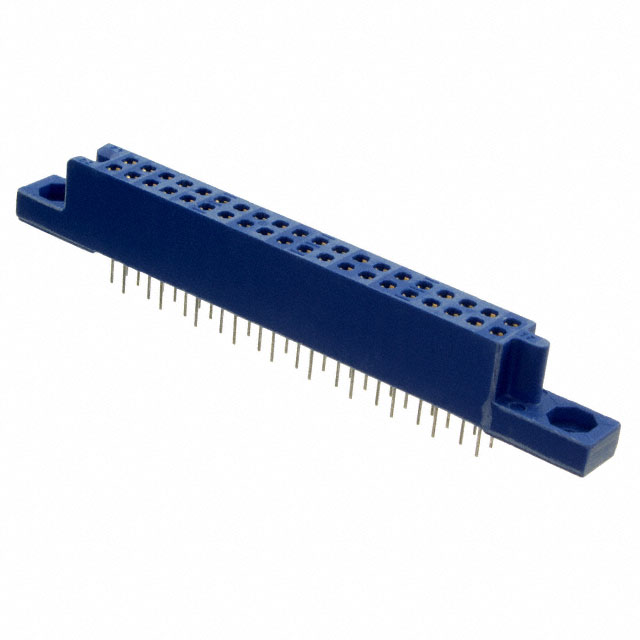

530340-2

Manufacturer :

TE Connectivity Aerospace Defense and Marine

Product Category :

Headers, Receptacles, Female Sockets

Insulation Color :

Blue

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Feature :

Mating Guide

Contact Finish - Post :

Tin-Lead

Insulation Material :

Diallyl Phthalate (DAP)

Mounting Type :

Through Hole

Number of Positions :

40

MIL Conformance :

yes

Plating Thickness :

50μin

Packaging :

Bulk

Fastening Type :

Push-Pull

ELV :

Compliant

Style :

Board to Board

Contact Material :

Copper, Nickel

Length :

72.51mm

Published :

1997

Factory Lead Time :

7 Weeks

Contact Finish - Mating :

Gold

Sealable :

No

Mixed Contacts :

No

Number Of PCB Rows :

2

DIN Conformance :

No

IEC Conformance :

No

Option :

GENERAL PURPOSE

Contact Length - Post :

0.156 3.96mm

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Connector Type :

Receptacle

Reliability :

COMMERCIAL

Orientation :

Vertical

Number of Rows :

2

Lead Length :

3.9624mm

RoHS Status :

Non-RoHS Compliant

Termination :

Solder

Contact Finish Thickness - Mating :

50.0μin 1.27μm

Filter Feature :

No

JESD-609 Code :

e0

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Insulation Height :

0.400 10.16mm

Polarization Key :

ENDS

Pbfree Code :

No

Contact Finish Thickness - Post :

100.0μin 2.54μm

Number of Positions Loaded :

All

Contact Type :

Female Socket

PCB Contact Pattern :

RECTANGULAR

Mount :

Through Hole

Depth :

6.29mm

Pitch - Mating :

0.100 2.54mm

Row Spacing - Mating :

0.100 (2.54mm)

Series :

Military, MIL-DTL-55302, 1000 Box

Contact Shape :

Square

Keyed :

yes

Mating Contact Pitch :

0.1 inch

ECCN Code :

EAR99

Number of Conductors :

ONE

Gender :

FEMALE
