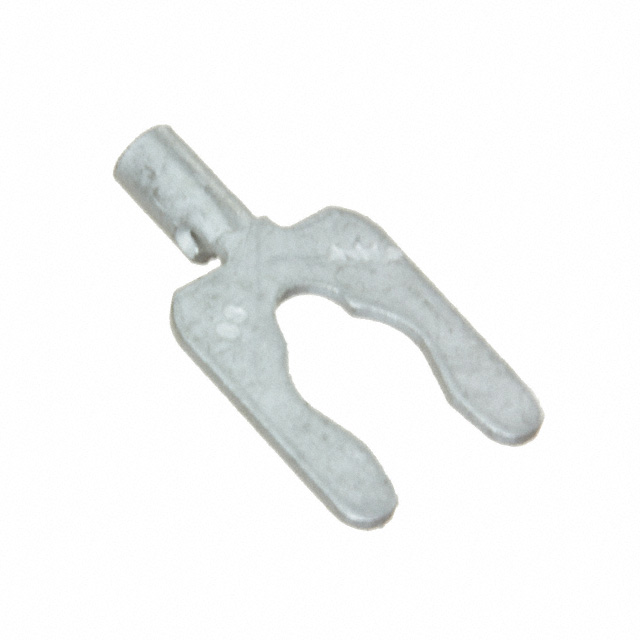

53003-1
Or copy the link below:
- Mfr.Part #
- 53003-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN SPADE TERM 22-26AWG #6
- Stock
- 6,751
- In Stock ：
- 6,751
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Spade Connectors
- Length - Termination :
- 0.135 3.43mm
- Contact Finish :
- Tin
- Termination :
- Crimp
- Mounting Type :
- Free Hanging (In-Line)
- Wire Gauge :
- 22-26 AWG
- Heavy Duty :
- No
- Lifecycle Status :
- ACTIVE (Last Updated: 4 months ago)
- Pbfree Code :
- yes
- Factory Lead Time :
- 14 Weeks
- Feature :
- Serrated Termination
- Terminal Type :
- Spring, Snap
- Published :
- 2003
- HTS Code :
- 8536.90.40.00
- Contact Material :
- Phosphor Bronze
- RoHS Status :
- RoHS Compliant
- Length - Ring Center to Termination :
- 0.203 5.16mm
- Length :
- 12.27mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Terminal and Terminal Block Type :
- FORK TERMINAL
- Diameter - Inside :
- 3.45 mm
- Stud/Tab Size :
- 6 Stud
- Insulation :
- Non-Insulated
- ECCN Code :
- EAR99
- Stud Diameter :
- 3.51 mm
- Length - Overall :
- 0.483 12.27mm
- Width - Outer Edges :
- 0.250 6.35mm
- Series :
- Budget
- Wire Cross Section :
- 0.41 mm2
- Packaging :
- Bulk
- Tongue Thickness :
- 457μm
- Tongue Inside Opening :
- 0.106 (2.69mm)
- Datasheets
- 53003-1
53003-1 datasheet pdf and Terminals - Spade Connectors product details from TE Connectivity AMP Connectors stock available at Xinshop
