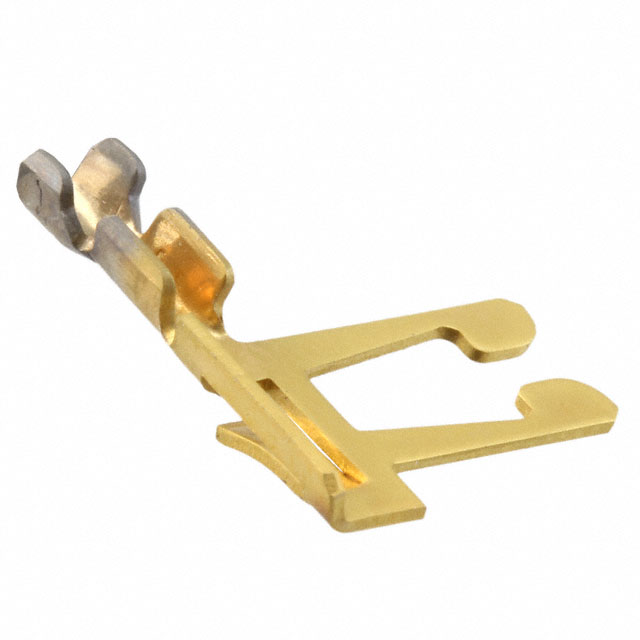

530004-7
Or copy the link below:
- Mfr.Part #
- 530004-7
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM EDGE DUOTYNE 22-26AWG CRIMP
- Stock
- 25,200
- In Stock ：
- 25,200
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Card Edge Connector Contacts
- DIN Conformance :
- No
- Wire Gauge (Min) :
- 22 AWG
- IEC Conformance :
- No
- Contact Style :
- Standard
- MIL Conformance :
- No
- Height :
- 2.54mm
- Contact Termination :
- Crimp
- Depth :
- 2.54mm
- Pin or Socket :
- Non-Gendered
- HTS Code :
- 8536.90.40.00
- Mount :
- CABLE
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Series :
- DUO-TYNE
- Contact Material :
- BERYLLIUM COPPER
- Connector Type :
- Connector
- Length :
- 12.31mm
- RoHS Status :
- RoHS Compliant
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Insulation Diameter :
- 1.4 mm
- Factory Lead Time :
- 14 Weeks
- Lead Free :
- Not Applicable
- Orientation :
- RIGHT ANGLE
- Gender :
- FEMALE
- Packaging :
- Tape and Reel (TR)
- ELV :
- Compliant
- Contact Finish :
- Gold
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Wire Gauge (Max) :
- 26 AWG
- Contact Plating :
- Nickel, Gold
- Assembly Item Name :
- Contact
- Published :
- 1997
- Wire Gauge :
- 22-26 AWG
- Underplate Material :
- Nickel
- Wire/Cable Gauge :
- 26 AWG
- ECCN Code :
- EAR99
- Datasheets
- 530004-7
