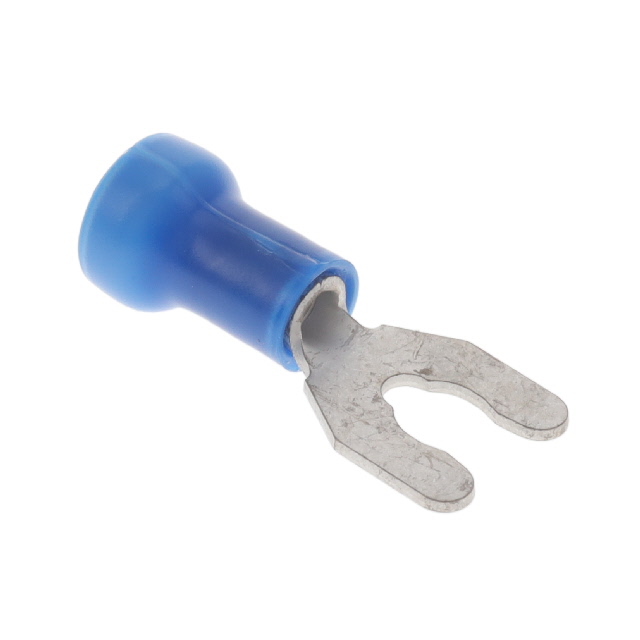

52956-2
Or copy the link below:
- Mfr.Part #
- 52956-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN SPADE TERM 14-16AWG #8 BLU
- Stock
- 8,438
- In Stock ：
- 8,438
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Spade Connectors
- Tongue Thickness :
- 790μm
- Stud/Tab Size :
- 8 Stud
- Packaging :
- Bulk
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Length :
- 23.368mm
- Material - Insulation :
- Poly-Vinyl Chloride (PVC)
- Stud Diameter :
- 4.17 mm
- Wire Gauge (Max) :
- 14 AWG
- Lead Free :
- Not Applicable
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insulation Diameter :
- 0.150 ~ 0.250 (3.81mm ~ 6.35mm)
- Insulation :
- Insulated
- Wire Cross Section :
- 2.62 mm2
- Wire Gauge (Min) :
- 16 AWG
- Length - Termination :
- 0.465 11.81mm
- Feature :
- Serrated Termination
- Contact Material :
- Brass
- Terminal Type :
- Spring, Snap
- Tongue Inside Opening :
- 0.164 (4.17mm)
- Mounting Type :
- Free Hanging (In-Line)
- Wire Gauge :
- 14-16 AWG
- Stud Size :
- M4
- ELV :
- Compliant
- Depth :
- 9.53mm
- Factory Lead Time :
- 16 Weeks
- Terminal Gender :
- FEMALE
- ECCN Code :
- EAR99
- Length - Ring Center to Termination :
- 0.281 7.14mm
- Termination :
- Crimp
- RoHS Status :
- RoHS Compliant
- Color :
- Blue
- Insulated Wire Support :
- yes
- Voltage - Rated AC :
- 600V
- Published :
- 1999
- Terminal and Terminal Block Type :
- FORK TERMINAL
- Contact Plating :
- Tin
- Series :
- Plasti-Grip
- HTS Code :
- 8536.90.40.00
- Wire/Cable Diameter :
- 6.35 mm
- Width - Outer Edges :
- 0.375 9.53mm
- Diameter - Inside :
- 6.4262 mm
- Length - Overall :
- 0.921 23.39mm
- Sealable :
- No
- Datasheets
- 52956-2
52956-2 datasheet pdf and Terminals - Spade Connectors product details from TE Connectivity AMP Connectors stock available at Xinshop
