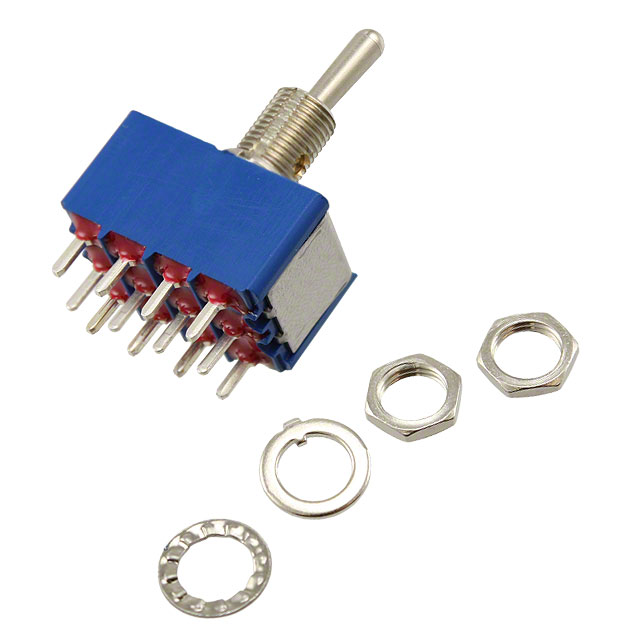

5266AB

Manufacturer :

APEM Inc.

Product Category :

Operating Temperature :

-40°C~85°C

Series :

5000

Feature :

Epoxy Sealed Terminals

Switch Type :

TOGGLE SWITCH

Termination Style :

PC Pin

Factory Lead Time :

5 Weeks

Housing Material :

Stainless Steel

Switch Function :

On-On

Contact (DC) Max Rating R Load :

4A@30VDC

Mounting Type :

Panel Mount

RoHS Status :

ROHS3 Compliant

Sealing :

EPOXY TERMINAL SEALED

Actuator Material :

Brass, Nickel Plated

Current Rating :

4A

ECCN Code :

EAR99

Panel Cutout Dimensions :

Circular - 6.50mm Dia

Illumination Type :

Illuminated, Non-Illuminated

Illumination :

Non-Illuminated

Voltage - Rated AC :

125V

Body Length or Diameter :

21.2mm

Electrical Life :

30,000 Cycles

Max Voltage Rating (AC) :

250V

Current Rating (Amps) :

6A AC 4A DC

Contact Material :

Silver

Actuator Type :

Standard Round

Mount :

Panel

Contact Current(DC)-Max :

4A

Actuator Length :

10.50mm

Contact (AC) Max Rating R Load :

6A@125VAC

Packaging :

Tray

Bushing Thread :

1/4-40

Body Height :

14.4mm

Mechanical Life :

100000 cycles

Contact Current(AC)-Max :

6A

Termination :

PC Pin

HTS Code :

8536.50.90.65

Orientation :

Straight

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Resistance :

10MOhm

Body Breadth :

13.2 mm

JESD-609 Code :

e4

Voltage - Rated DC :

30V

Pbfree Code :

yes

Max Voltage Rating (DC) :

30V

Circuit :

4PDT
