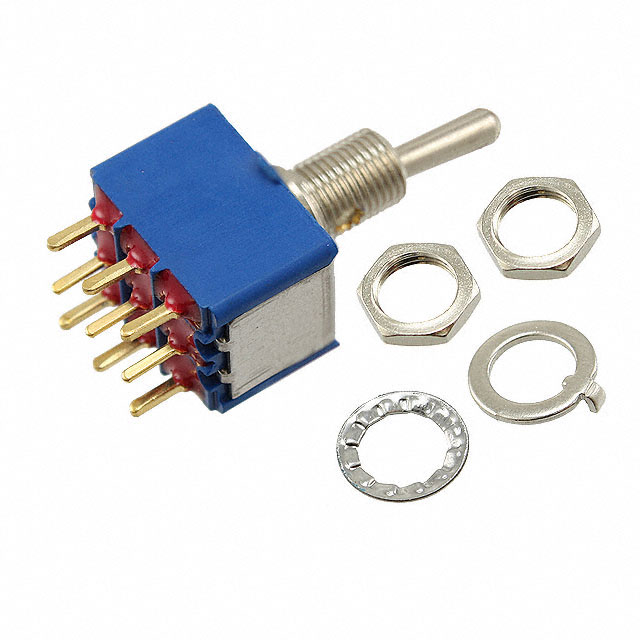

5256CDB

Manufacturer :

APEM Inc.

Product Category :

Contact (AC) Max Rating R Load :

.02A@20VAC

Body Height :

14.4mm

Termination :

PC Pin

RoHS Status :

ROHS3 Compliant

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Body Length or Diameter :

16.5mm

Contact Current(DC)-Max :

0.02A

JESD-609 Code :

e4

HTS Code :

8536.50.90.65

Max Voltage Rating (DC) :

20V

ECCN Code :

EAR99

Actuator Material :

Brass, Nickel Plated

Actuator Length :

10.50mm

Current Rating (Amps) :

0.4VA AC/DC

Factory Lead Time :

9 Weeks

Pbfree Code :

yes

Switch Type :

TOGGLE SWITCH

Contact Material :

Brass

Feature :

Epoxy Sealed Terminals

Contact Plating :

Gold

Mechanical Life :

100000 cycles

Mount :

Panel

Illumination :

Non-Illuminated

Packaging :

Tray

Circuit :

3PDT

Voltage - Rated AC :

20V

Bushing Thread :

1/4-40

Termination Style :

PC Pin

Electrical Life :

40,000 Cycles

Switch Function :

On-On

Contact Resistance :

10MOhm

Max Voltage Rating (AC) :

20V

Mounting Type :

Panel Mount

Operating Temperature :

-40°C~85°C

Actuator Type :

Standard Round

Orientation :

Straight

Panel Cutout Dimensions :

Circular - 6.50mm Dia

Voltage - Rated DC :

20V

Housing Material :

Stainless Steel

Sealing :

EPOXY TERMINAL SEALED

Contact (DC) Max Rating R Load :

.02A@20VDC

Body Breadth :

13.2 mm

Contact Current(AC)-Max :

0.02A

Series :

5000
