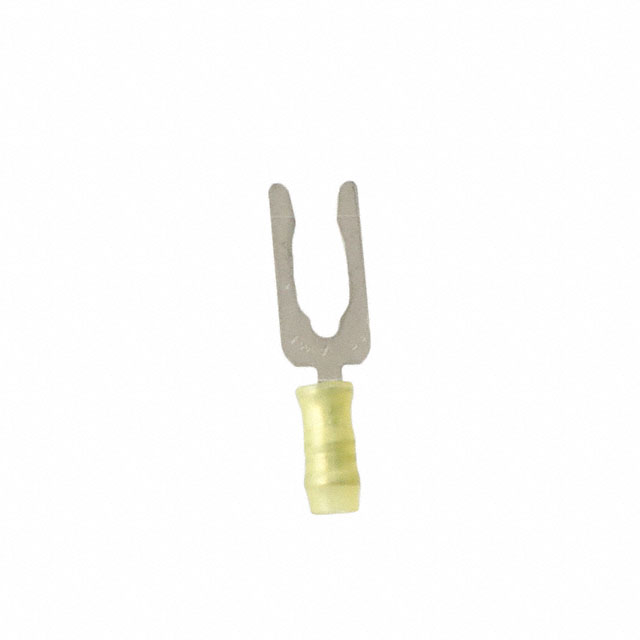

52403-1
Or copy the link below:
- Mfr.Part #
- 52403-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN SPADE TERM 22-26AWG #6 YEL
- Stock
- 4,443
- In Stock ：
- 4,443
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Spade Connectors
- Packaging :
- Tape and Reel (TR)
- Factory Lead Time :
- 31 Weeks
- Series :
- PIDG
- Insulated Wire Support :
- yes
- Width - Outer Edges :
- 0.250 6.35mm
- Contact Material :
- Phosphor Bronze
- Diameter - Inside :
- 2.1336 mm
- Terminal Type :
- Spring, Snap
- ELV :
- Compliant
- Mounting Type :
- Free Hanging (In-Line)
- Stud/Tab Size :
- 6 Stud
- ECCN Code :
- EAR99
- Pbfree Code :
- yes
- Tongue Inside Opening :
- 0.144 (3.66mm)
- Feature :
- Serrated Termination
- Contact Finish :
- Tin
- Published :
- 2010
- Wire Gauge (Max) :
- 26 AWG
- Material :
- Bronze
- Heavy Duty :
- No
- Length - Termination :
- 0.331 8.41mm
- Length - Overall :
- 0.847 21.51mm
- Lead Free :
- Not Applicable
- Length - Ring Center to Termination :
- 0.235 5.97mm
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Length :
- 21.5138mm
- RoHS Status :
- RoHS Compliant
- Terminal Gender :
- FEMALE
- Material - Insulation :
- Polyamide (PA), Nylon
- Stud Diameter :
- 3.5052 mm
- Insulation :
- Insulated
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Voltage - Rated AC :
- 300V
- Mount :
- Free Hanging
- Termination :
- Crimp
- Terminal and Terminal Block Type :
- WIRE TERMINAL
- Stud Size :
- M3.5
- Color :
- Yellow
- Wire Gauge :
- 22-26 AWG
- HTS Code :
- 8536.90.40.00
- Wire Gauge (Min) :
- 22 AWG
- Insulation Diameter :
- 0.050 ~ 0.082 (1.27mm ~ 2.08mm)
- Tongue Thickness :
- 500μm
- Datasheets
- 52403-1
52403-1 datasheet pdf and Terminals - Spade Connectors product details from TE Connectivity AMP Connectors stock available at Xinshop
