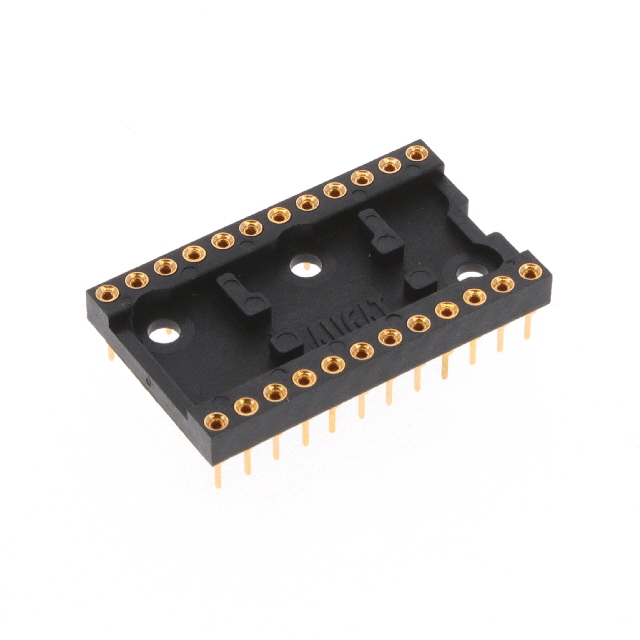

524-AG10D-ES
Or copy the link below:
- Mfr.Part #
- 524-AG10D-ES
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN IC DIP SOCKET 24POS GOLD
- Stock
- 213
- In Stock ：
- 213
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- IC Sockets
- Contact Finish Thickness - Mating :
- 25.0μin 0.63μm
- PCB Contact Pattern :
- RECTANGULAR
- ECCN Code :
- EAR99
- Contact Style :
- RND PIN-SKT
- Packaging :
- Bulk
- Feature :
- Closed Frame
- Mating Contact Pitch :
- 0.1 inch
- Pitch - Post :
- 0.100 2.54mm
- Contact Material - Post :
- Brass
- Mounting Type :
- Through Hole
- RoHS Status :
- RoHS Compliant
- Housing Material :
- Polyester
- Termination :
- Solder
- Dielectric Withstanding Voltage :
- 1400VAC V
- Body Length or Diameter :
- 1.2 inch
- Additional Feature :
- STANDARD: UL 94V-0
- Body Depth :
- 0.18 inch
- Contact Material - Mating :
- BERYLLIUM COPPER
- Current Rating :
- 3A
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- JESD-609 Code :
- e4
- Number of Positions or Pins (Grid) :
- 24 (2 x 12)
- Series :
- 500
- Published :
- 2005
- Pbfree Code :
- yes
- Termination Post Length :
- 0.125 3.18mm
- Contact Resistance :
- 10MOhm
- Number of Contacts :
- 24
- Terminal Pitch :
- 2.54mm
- HTS Code :
- 8536.69.40.40
- PCB Contact Row Spacing :
- 0.6 mm
- Factory Lead Time :
- 8 Weeks
- Pitch - Mating :
- 0.100 2.54mm
- Contact Finish - Mating :
- Gold
- Body Breadth :
- 0.7 inch
- Type :
- DIP, 0.4 (10.16mm) Row Spacing
- Operating Temperature :
- -55°C~125°C
- Datasheets
- 524-AG10D-ES
524-AG10D-ES datasheet pdf and Sockets for ICs, Transistors product details from TE Connectivity AMP Connectors stock available at Xinshop
