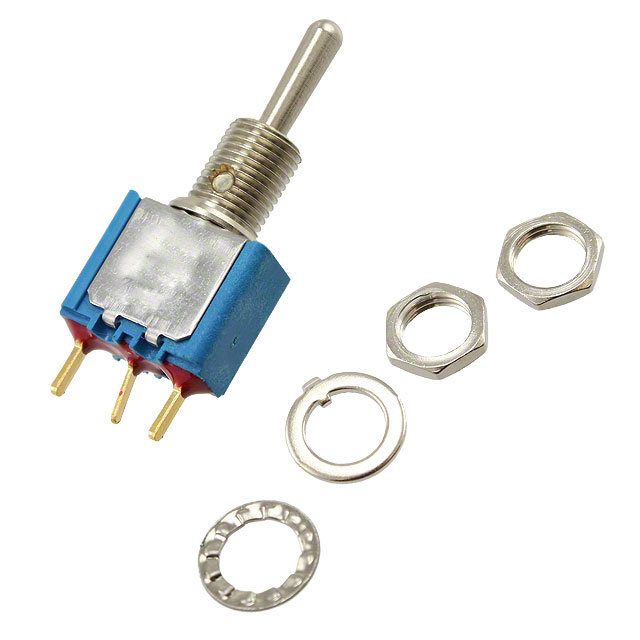

5239CDB

Manufacturer :

APEM Inc.

Product Category :

Max Voltage Rating (DC) :

20V

Housing Material :

Stainless Steel

Circuit :

SPDT

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Termination Style :

PC Pin

Switch Function :

On-Off-On

RoHS Status :

ROHS3 Compliant

Mechanical Life :

100000 cycles

Series :

5000

Pbfree Code :

yes

Sealing :

EPOXY TERMINAL SEALED

Contact Current(DC)-Max :

0.02A

Packaging :

Tray

Current Rating :

3A

Contact Current Rating :

6A

Termination :

PC Pin

Contact Current(AC)-Max :

0.02A

Illumination :

Non-Illuminated

Mounting Type :

Panel Mount

JESD-609 Code :

e4

Body Breadth :

7 mm

HTS Code :

8536.50.90.65

Body Height :

13.3mm

Current Rating (Amps) :

0.4VA AC/DC

Bushing Thread :

1/4-40

Actuator Material :

Brass, Nickel Plated

Max Voltage Rating (AC) :

20V

Switch Type :

TOGGLE SWITCH

Contact Resistance :

10MOhm

Contact (AC) Max Rating R Load :

.02A@20VAC

Orientation :

Straight

REACH SVHC :

No SVHC

Factory Lead Time :

5 Weeks

Actuator Length :

10.50mm

Operating Temperature :

-40°C~85°C

Voltage - Rated DC :

20V

Contact (DC) Max Rating R Load :

.02A@20VDC

Actuator Type :

Standard Round

Illumination Type :

Illuminated, Non-Illuminated

Electrical Life :

50,000 Cycles

Feature :

Epoxy Sealed Terminals

ECCN Code :

EAR99

Contact Material :

Brass, Gold

Voltage - Rated AC :

20V

Contact Plating :

Gold

Mount :

PCB, Panel

Panel Cutout Dimensions :

Circular - 6.50mm Dia

Length :

13.2mm
