5207828-4

Share

Or copy the link below:

Mfr.Part #
5207828-4
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
CONN D-SUB RCPT 25POS VERT SLDR
Stock
612
In Stock :
612

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
D-Sub Connector Assemblies
Option :
GENERAL PURPOSE
Number of Rows :
2
Dielectric Material :
Polyester
Number of Ports :
1
Width :
12.17mm
Number of Positions :
25
Pitch :
2.7432mm
Total Number of Contacts :
25
Reference Standard :
UL
IEC Conformance :
No
Flammability Rating :
UL94 V-0
Body Material :
Plastic
Mating Connector Lock :
Without
Shell Size, Connector Layout :
3 DB B
Filter Feature :
No
Lifecycle Status :
ACTIVE (Last Updated: 5 months ago)
RoHS Status :
RoHS Compliant
Contact Finish Thickness :
30.0μin 0.76μm
Length :
53.09mm
Empty Shell :
No
PCB Thickness :
2.36mm
REACH SVHC :
Unknown
Depth :
10.41mm
ELV :
Compliant
Housing Material :
Thermoplastic
Color :
Black
Packaging :
Tube
UL Flammability Code :
94V-0
Number Of PCB Rows :
2
Current Rating :
6A
Lead Length :
3.175mm
DIN Conformance :
No
Flange Feature :
Housing/Shell (Unthreaded)
Approval Agency :
CSA, UL
Gender :
Receptacle
Material Flammability Rating :
UL94 V-0
Operating Temperature :
-55°C~105°C
PCB Contact Pattern :
STAGGERED
Sealable :
No
Series :
AMPLIMITE HD-20
Mount :
Through Hole
Row Spacing :
2.8448 mm
Mixed Contacts :
No
Contact Shape :
Round
Lead Free :
Lead Free
Connector Style :
D-Sub
Orientation :
Vertical
Preloaded :
yes
Contact Type :
Signal
Voltage - Rated :
125V
Factory Lead Time :
4 Weeks
Termination :
Solder
PCB Mount Retention :
With
Hole Diameter :
3.048 mm
Contact Finish :
Gold
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Connector Type :
Receptacle, Female Sockets
Contact Material :
Phosphor Bronze
MIL Conformance :
No
Mounting Type :
Through Hole
Plating Thickness :
30μin
Published :
2005
Reliability :
COMMERCIAL
Datasheets
5207828-4
Introducing D-Sub Connector Assemblies TE Connectivity AMP Connectors 5207828-4 from Chip IC,where excellence meets affordability. This product stands out with its Operating Temperature:-55°C~105°C, Mounting Type:Through Hole, 5207828-4 pinout, 5207828-4 datasheet PDF, 5207828-4 amp .Beyond D-Sub Connector Assemblies TE Connectivity AMP Connectors 5207828-4 ,we also offer ICD15S13E4GX00LF, L77SDEH09SOL2RM5, A-DF 25 A/KG-T2S, Our vast inventory has you covered. Contact us now for immediate solutions.

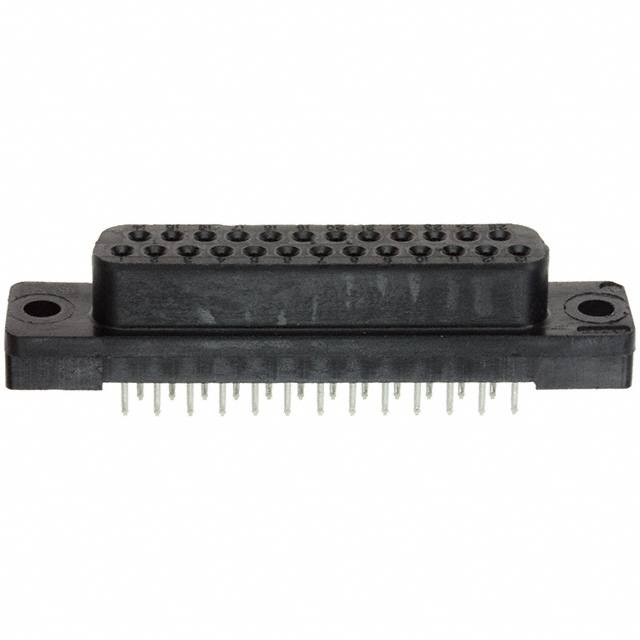

TE Connectivity AMP Connectors 5207828-4


AMPLIMITE HD-20 Series D-Sub Receptacle, Female Sockets 25-Position Receptacle Signal Solder 3 DB B Through Hole Phosphor Bronze Gold

5207828-4 Overview


The packaging contains Receptacle, Female Sockets.This device is mounted in the Through Hole position.It has been determined that a Tube case is necessary to package the product.There is a product in the AMPLIMITE HD-20 Series.The device has 1 ports that can be used to manage a variety of tasks.Part Through Hole is mounted to the part.As a result, the device runs at -55°C~105°C Operating Temperature.

5207828-4 Features


AMPLIMITE HD-20 series


5207828-4 Applications


There are a lot of TE Connectivity AMP Connectors
5207828-4 D-Sub Connectors applications.


  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
  • Electrical substations
  • Energy efficient lighting (LED)
Purchase

You may place an order without registering to Chip IC. We strongly recommend that you log in before purchasing as you can track your order at any time.

RFQ (Request for Quotations)

It is recommended to send RFQ to get the latest prices and stock availability about the part.Our sales will reply to your inquiry within 24 hours.

Payment Method

For your convenience, we accept multiple payment methods in USD, Such as:PayPal, Credit Card, and wire transfer.

IMPORTANT NOTICE

You may place an order without registering to 1. You'll receive an order confirmations by e-mail soon . (Please remember to check the spam box if you didn't hear from us). 2. Since stock availability and prices may change at any time, the sales will reconfirm the order details and update you at soonest time.

Shipping Method

Most of our products are shipped via FEDEX,DHL,UPS and SF EXPRESS...

Shipping Cost

Shipping Cost starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).If customer have shipping account, we can make shipment under customer’s shipping account with freight collect directly.

The basic freight (for package ≤0.5 KG ) depends on the time zones and countries

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose. You can track it by the tracking no.
