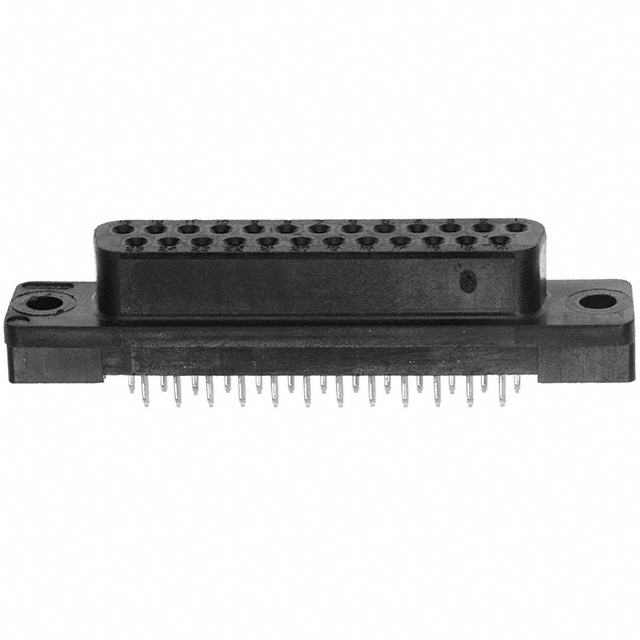

5207828-3

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

D-Sub Connector Assemblies

Connector Type :

Receptacle, Female Sockets

Factory Lead Time :

12 Weeks

Packaging :

Tube

Body Material :

Plastic

Pitch :

2.7432mm

Mating Connector Lock :

Without

Termination :

Solder

Color :

Black

Contact Finish Thickness :

Flash

Flammability Rating :

UL94 V-0

Reliability :

COMMERCIAL

Dielectric Material :

Polyester

Contact Finish :

Gold

Approval Agency :

CSA, UL

ECCN Code :

EAR99

Hole Diameter :

3.048 mm

RoHS Status :

RoHS Compliant

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Published :

2005

ELV :

Compliant

Sealable :

No

Lifecycle Status :

ACTIVE (Last Updated: 5 months ago)

Material Flammability Rating :

UL94 V-0

Orientation :

Vertical

Mount :

Through Hole

Number of Rows :

2

Contact Type :

Signal

Number of Ports :

1

Operating Temperature :

-55°C~105°C

Number of Positions :

25

Contact Shape :

Round

PCB Thickness :

2.36mm

Flange Feature :

Housing/Shell (Unthreaded)

Number Of PCB Rows :

2

Lead Length :

3.175mm

Depth :

10.41mm

PCB Contact Pattern :

STAGGERED

Preloaded :

yes

Voltage - Rated :

125V

Current Rating :

6A

Shell Size, Connector Layout :

3 DB B

Reference Standard :

UL

Lead Free :

Lead Free

JESD-609 Code :

e3

Housing Material :

Thermoplastic

Total Number of Contacts :

25

Length :

53.09mm

PCB Mount Retention :

With

Contact Material :

Phosphor Bronze

Series :

AMPLIMITE HD-20

Row Spacing :

2.8448 mm

HTS Code :

8536.69.40.30

Connector Style :

D-Sub

Gender :

Receptacle

Mounting Type :

Through Hole
