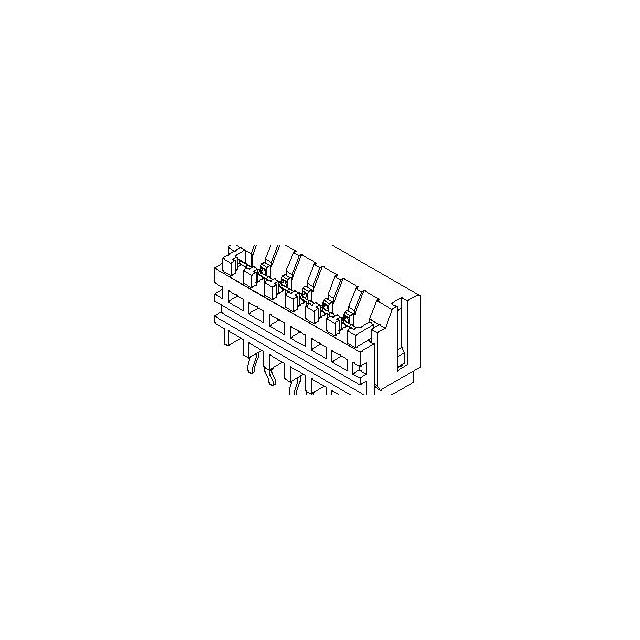

52011-0510

Manufacturer :

Molex

Product Category :

Unclassified

Total Number of Contacts :

5

Body Orientation :

Straight

Termination Method :

Wire Wrap

Body Breadth :

0.276 inch

Voltage Rating Max :

250VAC

UL Flammability Code :

94V-0

MIL Conformance :

No

Contact Plating :

Tin

Additional Feature :

PUSH-COVER STYLE

Reach Compliance Code :

Compliant

Number of Contacts :

5(POS)

Mating Contact Pitch :

0.098 inch

HTS Code :

8536.69.40.40

Rated Current (Signal) :

3 A

Number Of PCB Rows :

1

Manufacturer :

Molex

Series :

*

Contact Gender :

M

Mixed Contacts :

No

IEC Conformance :

No

Dielectric Withstanding Voltage :

1000VAC V

Contact Pattern :

RECTANGULAR

Reference Standard :

UL

Mounting Type :

BOARD

Option :

GENERAL PURPOSE

Body Depth :

0.394 inch

Current Rating (Max) :

3/Contact(A)

Connector Type :

BOARD CONNECTOR

Product Depth (mm) :

7(mm)

Package :

Box

Insulation Resistance :

1000000000 Ω

Product Length (mm) :

15.6(mm)

Filter Feature :

No

Mating Information :

Ribbon Cable

Operating Temp Range :

-40C to 105C

Subcategory :

Headers and Edge Type Connectors

Terminal Pitch :

2.5 mm

Termination Type :

WIRE TRAP

Number of Contact Rows :

1

Contact Material :

Phosphor Bronze

Pbfree Code :

yes

PCB Contact Pattern :

RECTANGULAR

Factory Lead Time :

6 Weeks

Terminal Length :

0.126 inch

Pitch (mm) :

2.5(mm)

ECCN Code :

EAR99

Contact Resistance :

20 mΩ

Reliability :

COMMERCIAL

Product Height (mm) :

10(mm)

Product Status :

Active

DIN Conformance :

No

Mounting Style :

Through Hole

Packaging :

Tray
