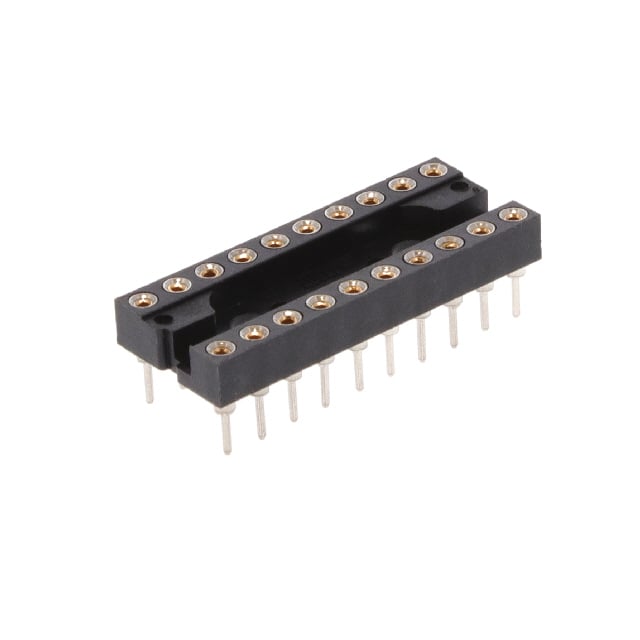

520-AG11D-ES
Or copy the link below:
- Mfr.Part #
- 520-AG11D-ES
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- DIP SOCKET T/H 20POS
- Stock
- 842
- In Stock ：
- 842
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- IC Sockets
- Contact Material - Mating :
- COPPER ALLOY
- Number of Contacts :
- 20
- Dielectric Withstanding Voltage :
- 1400VAC V
- Connector Type :
- Pin
- Lead Pitch :
- 2.54mm
- Circuit Application :
- Signal
- Factory Lead Time :
- 8 Weeks
- Packaging :
- Tube
- HTS Code :
- 8536.69.40.40
- Contact Resistance :
- 10MOhm
- Gender :
- FEMALE
- Body Breadth :
- 0.4 inch
- Number of Rows :
- 2
- Pitch - Post :
- 0.100 2.54mm
- Insulation Resistance :
- 5GOhm
- ELV :
- Compliant
- Length :
- 25.4mm
- Operating Temperature :
- -55°C~105°C
- Series :
- 500
- Additional Feature :
- STANDARD: UL 94V-0
- Contact Material :
- Copper
- Current Rating :
- 3A
- Published :
- 2005
- Mounting Type :
- Through Hole
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Lead Length :
- 3.175mm
- Orientation :
- Straight
- Number of Positions or Pins (Grid) :
- 20 (2 x 10)
- Contact Finish - Post :
- Tin-Lead
- RoHS Status :
- RoHS Compliant
- Row Spacing :
- 7.62 mm
- Radiation Hardening :
- No
- Material Flammability Rating :
- UL94 V-0
- Feature :
- Closed Frame
- PCB Contact Pattern :
- RECTANGULAR
- Depth :
- 10.16mm
- Termination :
- Solder
- Voltage - Rated DC :
- 1kV
- Voltage - Rated :
- 1kV
- Type :
- DIP, 0.3 (7.62mm) Row Spacing
- Contact Finish - Mating :
- Gold
- JESD-609 Code :
- e0
- Housing Material :
- Polyester
- Pitch - Mating :
- 0.100 2.54mm
- Contact Material - Post :
- COPPER ALLOY
- Flammability Rating :
- UL94 V-0
- Mount :
- Through Hole
- ECCN Code :
- EAR99
- Plating Thickness :
- 635 nm
- Pbfree Code :
- No
- Mating Contact Pitch :
- 0.1 inch
- Contact Current Rating :
- 3A
- Termination Post Length :
- 0.125 3.18mm
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Datasheets
- 520-AG11D-ES
