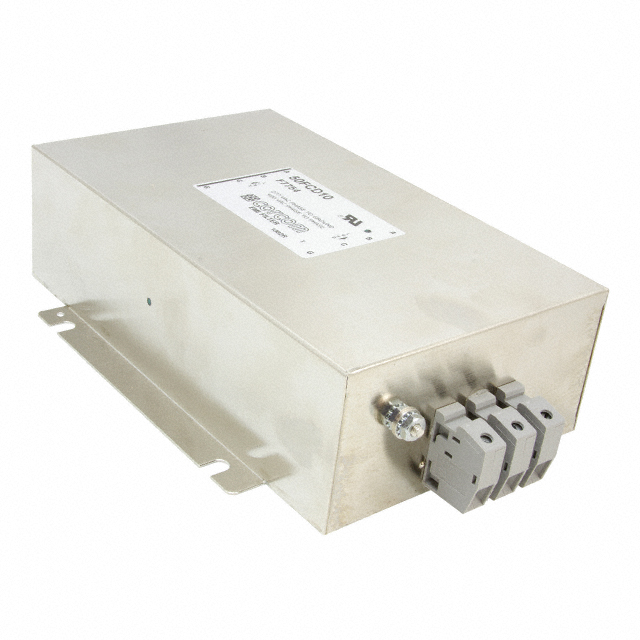

Images are for reference only.

Delivery：

Payment：

50FCD10

Or copy the link below:

Mfr.Part #: 50FCD10

Manufacturer: TE Connectivity Corcom Filters

Package / Case

Datasheet: Download

Description: LINE FILTER 50A CHASSIS MOUNT

Stock: 3

In Stock ：: 3

Request A Quote(RFQ)

* Fullname:

* Company:

* E-Mail:

Phone:

Comment:

* Quantity:

Manufacturer :: TE Connectivity Corcom Filters
Product Category :: Power Line Filter Modules

Frequency - Operating :: 50/60Hz

Voltage - Rated AC :: 480V

Configuration :: Two Stage

Width :: 160mm

Moisture Sensitivity Level (MSL) :: Not Applicable

RoHS Status :: RoHS Compliant

Voltage - Rated AC (Phase to Phase) :: 480V

Voltage - Rated AC (Phase to Ground/Neutral) :: 277V

Max Current Rating :: 50A

Lifecycle Status :: ACTIVE (Last Updated: 3 days ago)

Series :: FCD

Published :: 2003

Termination Style :: Terminal Block

Voltage - Rated :: 440V

Factory Lead Time :: 2 Weeks

Max Voltage Rating (AC) :: 480V

Mount :: Chassis Mount, Flanges, Panel

Operating Temperature :: -10°C~40°C

Length :: 160mm

Termination :: Screw, Terminal Block

Max Operating Temperature :: 40°C

Mounting Type :: Chassis Mount

Packaging :: Bulk

Current :: 50A

Depth :: 64.52mm

Capacitance :: 3.1μF

Frequency :: 60Hz

Lead Free :: Lead Free

Filter Type :: Three Phase (Delta)

Applications :: Regenerative Motor Drive

Wire/Cable Gauge :: 8 AWG

Approval Agency :: UR

Min Operating Temperature :: -10°C

Voltage - Rated DC :: 480V

ELV :: Compliant

Current Rating :: 50A

Leakage Current :: 4.3mA

Datasheets: 50FCD10

50FCD10 Documents

Introducing Power Line Filter Modules TE Connectivity Corcom Filters 50FCD10 from Chip IC,where excellence meets affordability. This product stands out with its Operating Temperature：-10°C~40°C, Mounting Type：Chassis Mount, 50FCD10 pinout, 50FCD10 datasheet PDF, 50FCD10 amp .Beyond Power Line Filter Modules TE Connectivity Corcom Filters 50FCD10 ,we also offer FN2030-6-06, FN2020-6-06, FN2020-12-06, Our vast inventory has you covered. Contact us now for immediate solutions.

50FCD10 datasheet pdf and Power Line Filter Modules product details from TE Connectivity Corcom Filters stock available at
