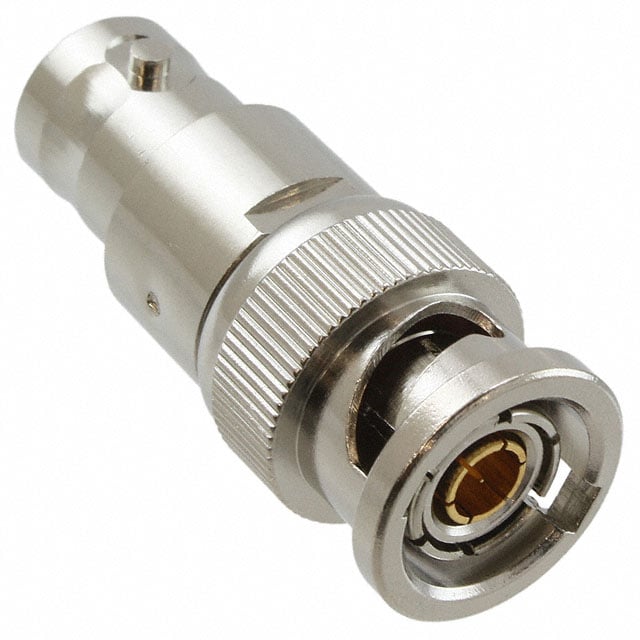

5090

Manufacturer :

Pomona Electronics

Product Category :

Coaxial Connector (RF) Adapters

Voltage - Rated AC :

500mV

Contact Material :

Brass, Copper

Packaging :

Bulk

Adapter Series :

BNC to BNC Triaxial

Body Material :

Brass

Frequency :

500Hz

Additional Feature :

Shielded

Option :

GENERAL PURPOSE

Frequency (Max) :

500MHz

Body Finish :

Nickel

Length :

34.54mm

Gender Type A :

Male

Center Gender :

Female to Male

Moisture Sensitivity Level (MSL) :

Not Applicable

Center Contact Material :

Beryllium Copper; Brass

Package / Case :

403

Factory Lead Time :

2 Weeks

Fastening Type :

Bayonet Lock, Bayonet Lock

Convert To (Adapter End) :

BNC Jack, Female Socket

Dielectric Material :

Polytetrafluoroethylene (PTFE)

HTS Code :

8536.69.80.00

MIL Conformance :

No

Filter Feature :

No

Insulation Material :

Polytetrafluoroethylene

Center Contact Plating :

Gold

Connector Type :

BNC

Style :

Straight

Polarity :

Normal

RoHS Status :

ROHS3 Compliant

Color :

Silver

Conversion Type :

Between Series

Pbfree Code :

yes

ECCN Code :

EAR99

IEC Conformance :

No

Mount :

Free Hanging

Adapter Type :

Plug to Jack

JESD-609 Code :

e4

Reliability :

COMMERCIAL

Convert From (Adapter End) :

BNC Triaxial Plug, Male Pin

DIN Conformance :

No

Mounting Type :

Free Hanging (In-Line)
