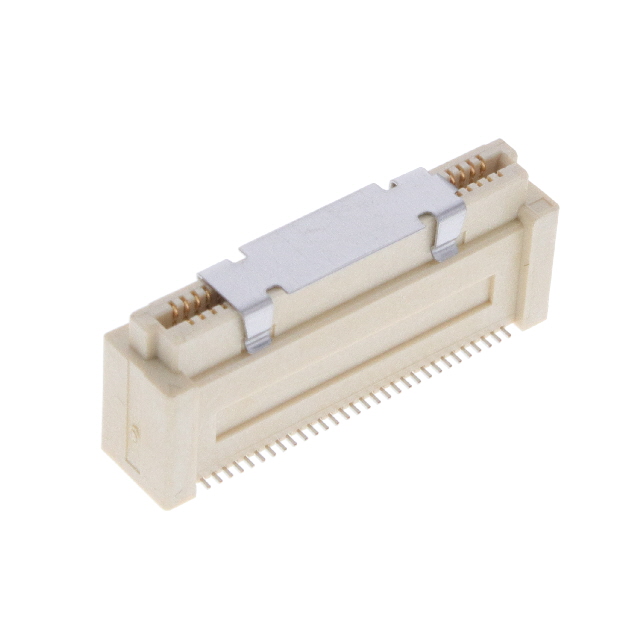

5084618-2
Or copy the link below:
- Mfr.Part #
- 5084618-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 60POS SMD GOLD
- Stock
- 197
- In Stock ：
- 197
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Arrays, Edge Type, Mezzanine (Board to Board)
- RoHS Status :
- RoHS Compliant
- Number of Positions :
- 60
- Mixed Contacts :
- No
- Series :
- Free Height (FH)
- Pitch :
- 0.031 0.80mm
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Row Spacing :
- 2.4 mm
- Feature :
- Board Guide
- Operating Supply Voltage :
- 100V
- Min Operating Temperature :
- -40°C
- ELV :
- Compliant
- Contact Current Rating :
- 500mA
- Mounting Type :
- Surface Mount
- Height Above Board :
- 0.463 11.75mm
- Pbfree Code :
- yes
- Option :
- GENERAL PURPOSE
- PCB Mount Retention :
- Without
- Housing Color :
- Natural
- Mating Alignment :
- With
- DIN Conformance :
- No
- Insulation Resistance :
- 2MOhm
- Max Operating Temperature :
- 125°C
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Shape :
- Square
- Contact Finish Thickness - Mating :
- 762 nm
- Mount :
- Surface Mount
- Connector Type :
- Receptacle, Outer Shroud Contacts
- IEC Conformance :
- No
- Orientation :
- Vertical
- Stack Height (Mating) :
- 13mm
- Depth :
- 6.8mm
- Length :
- 29.8mm
- Contact Finish :
- Gold
- Housing Material :
- Thermoplastic
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Contact Finish Thickness :
- 30.0μin 0.76μm
- MIL Conformance :
- No
- Packaging :
- Tape and Reel (TR)
- Flammability Rating :
- UL94 V-0
- Number of Rows :
- 2
- Filter Feature :
- No
- Gender :
- FEMALE
- Factory Lead Time :
- 8 Weeks
- Height :
- 13.0048mm
- Contact Resistance :
- 30mOhm
- Published :
- 2004
- Preloaded :
- yes
- Sealable :
- No
- Stack Height :
- 15mm
- Total Number of Contacts :
- 60
- Termination :
- SMD/SMT
- Datasheets
- 5084618-2
Receptacle, Outer Shroud Contacts Tape & Reel (TR) 2 Rows 0.031 0.80mm Surface Mount 60 Positions Free Height (FH) Gold SMD/SMT
5084618-2 Overview
It comes in Receptacle, Outer Shroud Contacts packaging.In order to package the product, a Tape & Reel (TR) case is used.The device's mounting type is Surface Mount.It belongs to the Free Height (FH) Series of products.When operating, it is possible to ensure that Board Guide is maintained.It is necessary to use a Surface Mount socket in order to mount this part.It's best to use it when the temperature is below 125°C.This device must operate at a minimum temperature of -40°C.As this device is suitable for the operation with a 100V supply, it is suitable for use with that supply.
5084618-2 Features
Free Height (FH) series
Package / Case: Tape & Reel (TR)
Mounting Type:Surface Mount
Max Operating temperature at -40°C
5084618-2 Applications
There are a lot of TE Connectivity AMP Connectors
5084618-2 Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
