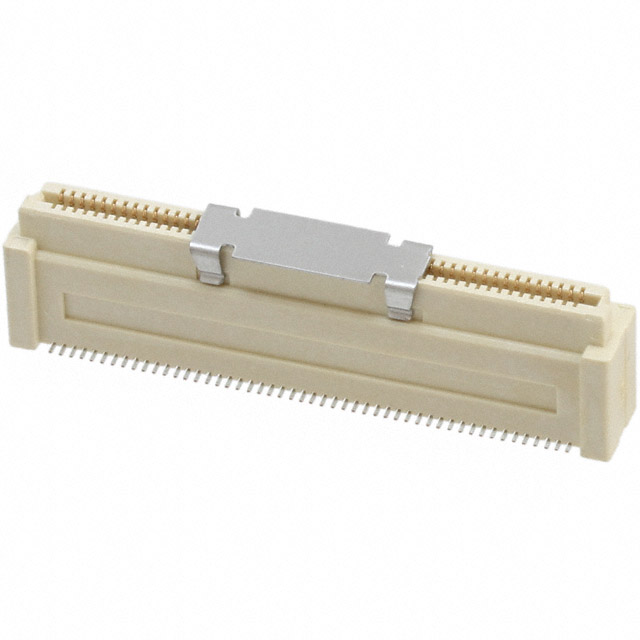

5084616-4

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Option :

GENERAL PURPOSE

Length :

45.8mm

Row Spacing :

2.4 mm

Termination :

SMD/SMT

Pbfree Code :

yes

Stack Height :

15mm

Series :

Free Height (FH)

Mating Alignment :

With

Contact Resistance :

30mOhm

Housing Material :

Polymer

Gender :

Receptacle

Depth :

6.8mm

Mixed Contacts :

No

Contact Finish Thickness - Mating :

200 nm

ELV :

Compliant

Contact Finish Thickness :

8.00μin 0.203μm

Feature :

Board Guide

Filter Feature :

No

Mounting Type :

Surface Mount

RoHS Status :

RoHS Compliant

Total Number of Contacts :

100

DIN Conformance :

No

Number of Rows :

2

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Max Operating Temperature :

125°C

Height :

13.0048mm

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

IEC Conformance :

No

Stack Height (Mating) :

13mm 14mm 15mm 16mm

Orientation :

Vertical

MIL Conformance :

No

Operating Supply Voltage :

100V

Sealable :

No

Flammability Rating :

UL94 V-0

Contact Shape :

Square

Factory Lead Time :

14 Weeks

Pitch :

0.031 0.80mm

Contact Current Rating :

500mA

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

PCB Mount Retention :

Without

Max Voltage Rating (AC) :

100V

Connector Type :

Receptacle, Outer Shroud Contacts

Circuit Application :

Signal

Number of Positions :

100

Min Operating Temperature :

-40°C

Preloaded :

yes

Insulation Resistance :

2MOhm

Height Above Board :

0.463 11.75mm

Mount :

Surface Mount

Housing Color :

Natural

Published :

2006

Contact Finish :

Gold

Packaging :

Tape and Reel (TR)
